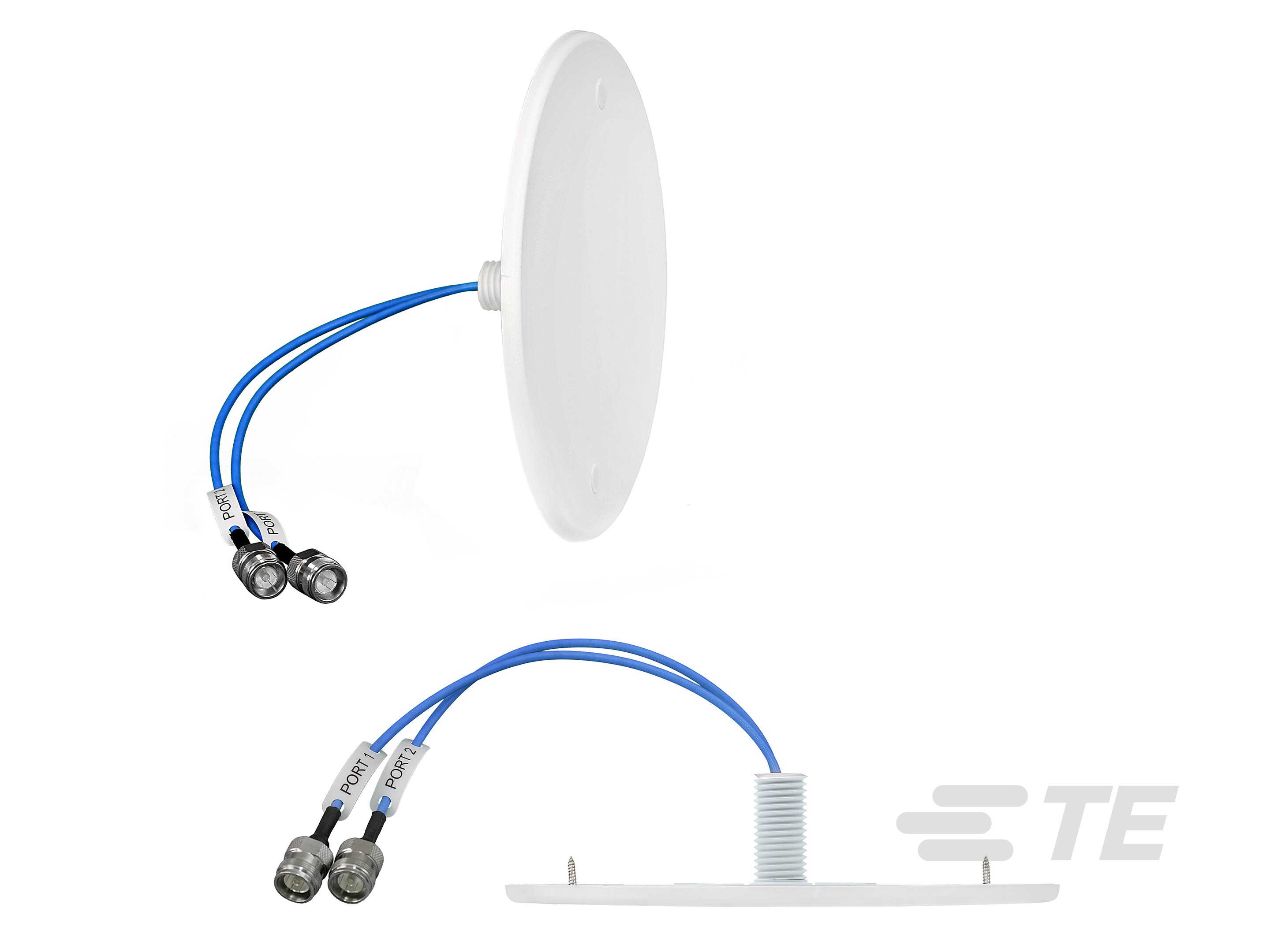

Specification	CFD69716P1-30NF

Antenna Type	Flat Panel
Applications	LTE
Features	Cable, 300mm
Frequency (Center/Band)	920MHz, 4GHz, 2.5GHz, 1.92GHz, 1.45GHz, 761MHz, 6.525GHz, 2.045GHz, 3.55GHz, 1.785GHz, 859MHz, 5.5375GHz
Frequency Group	Wide Band
Frequency Range (Band 1) Maximum	824 MHz
Frequency Range (Band 1) Minimum	698 MHz
Frequency Range (Band 10) Maximum	4.2 GHz
Frequency Range (Band 10) Minimum	3.8 GHz
Frequency Range (Band 11) Maximum	5.925 GHz
Frequency Range (Band 11) Minimum	5.15 GHz
Frequency Range (Band 12) Maximum	7.125 GHz
Frequency Range (Band 12) Minimum	5.925 GHz
Frequency Range (Band 2) Maximum	894 MHz
Frequency Range (Band 2) Minimum	824 MHz
Frequency Range (Band 3) Maximum	960 MHz
Frequency Range (Band 3) Minimum	880 MHz
Frequency Range (Band 4) Maximum	1.55 GHz
Frequency Range (Band 4) Minimum	1.35 GHz
Frequency Range (Band 5) Maximum	1.88 GHz
Frequency Range (Band 5) Minimum	1.69 GHz
Frequency Range (Band 6) Maximum	1.99 GHz
Frequency Range (Band 6) Minimum	1.85 GHz
Frequency Range (Band 7) Maximum	2.18 GHz
Frequency Range (Band 7) Minimum	1.91 GHz
Frequency Range (Band 8) Maximum	2.7 GHz
Frequency Range (Band 8) Minimum	2.3 GHz
Frequency Range (Band 9) Maximum	3.8 GHz
Frequency Range (Band 9) Minimum	3.3 GHz
Gain	4.3 dBi, 2.8 dBi, 5.6 dBi, 3.4 dBi, 3.3 dBi, 2.7 dBi, 3.8 dBi, 5.7 dBi, 5.3 dBi, 5.4 dBi, 5.5 dBi
Height (Max)	0.299 in
Mounting Type	Panel Mount
Number of Bands	12
Power - Max	50 VA
RF Family/Standard	Cellular
Termination	N Type Female
VSWR	1.7, 2.3
VSWR Maximum	2.3
VSWR Minimum	1.7
