RAHPCUC31AUTR
ActiveSWITCHCRAFT/CONXALL

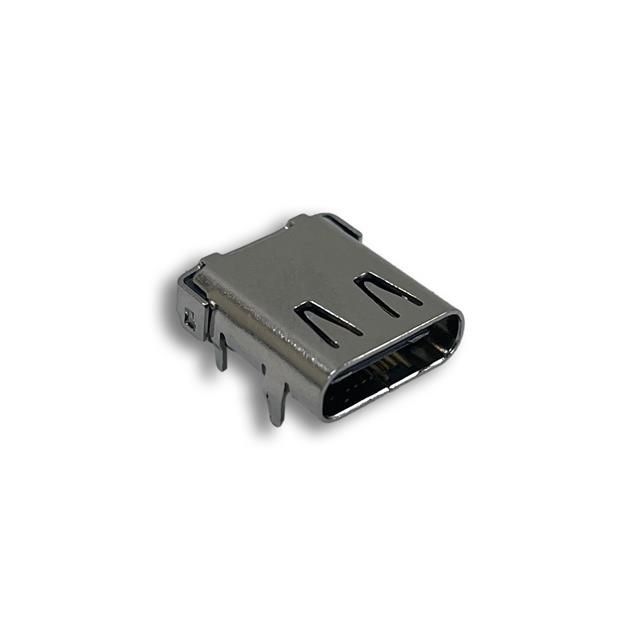

USB TYPE-C CONNECTOR, RIGHT ANGL
RAHPCUC31AUTR
ActiveSWITCHCRAFT/CONXALL
USB TYPE-C CONNECTOR, RIGHT ANGL
Description
General part information
RAHPCUC31AUTR
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | RAHPCUC31AUTR |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating | 3 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Right Angle |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Specifications | Superspeed + (USB 3.1), USB 3.2 Gen 2 (USB 3.1 Gen 2 |
| Termination | Solder |
