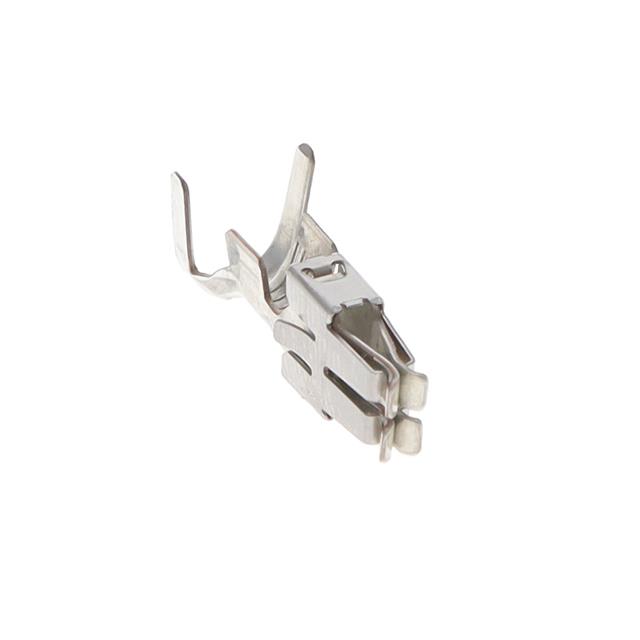

928966-1
ActiveTE Connectivity AMP Connectors
CONTACT SKT CRIMP ST CABLE MOUNT 11-13AWG REEL
928966-1
ActiveTE Connectivity AMP Connectors
CONTACT SKT CRIMP ST CABLE MOUNT 11-13AWG REEL
Description
General part information
Standard Power Timer Series
Receptacle Terminal, 13 – 11 AWG, 2.5 – 4 mm² Wire, 6.3 mm [.248 in] Tab Width, Tin (Sn), Sealable, Standard Power Timer
Technical Specifications
Parameters and characteristics for this part
| Specification | 928966-1 |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Tab |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 13 AWG |
| Wire Gauge (AWG) (Min) | 11 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
114-18037 Application Spec
RV 100 CABLE-CONN. SYSTEM
Standard Power Timer Kontakt
QUALIFICATION TEST REPORT FOR STANDARD POWER TIMER CONTACT SYSTEM
Empfehlung min. Leitungslaenge bei Ultraschall-Schweissknoten / RECOMMENDATION MIN. WIRE LENGTH FOR ULTRASONIS WELD SPLICES
114-18037 - APPLICATION SPECIFICATION FOR STANDARD POWER TIMER CONTACTS
ENG_CD_928966_C4.pdf
Allgemeine Crimpspezifikation / GENERAL CRIMP SPEC.
Datasheet
