3007123
ActivePhoenix Contact
CONN TERM BLK GROUND 10-26AWG
3007123
ActivePhoenix Contact
CONN TERM BLK GROUND 10-26AWG
Description
General part information
3007123

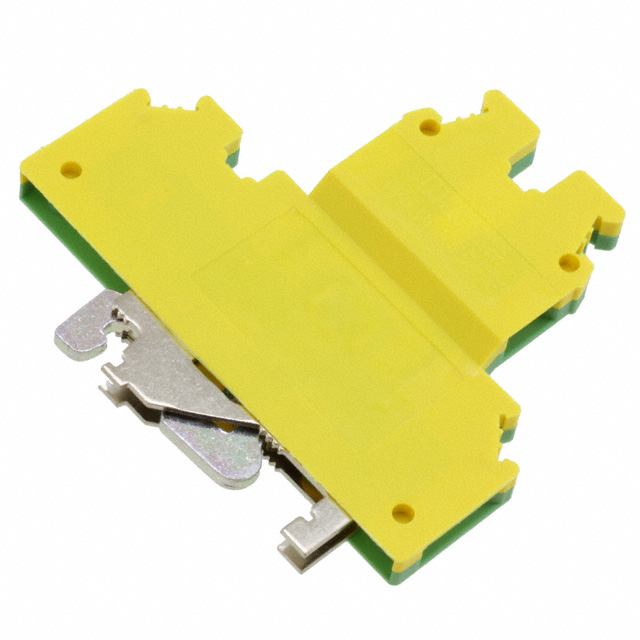

Terminal Block Connector 4 Position Ground, Earth Green, Yellow 10-26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3007123 |
|---|---|
| Color | Yellow, Green |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-2 |
| Number of Levels | 2 |
| Number of Levels (Connection) | Connected |
| Number of Positions | 4 |
| Stripping Length | 8 mm |
| Terminal Width | 6.2 mm |
| Termination Style | Screw |
| Type | Earth, Ground |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.2 mm² |
