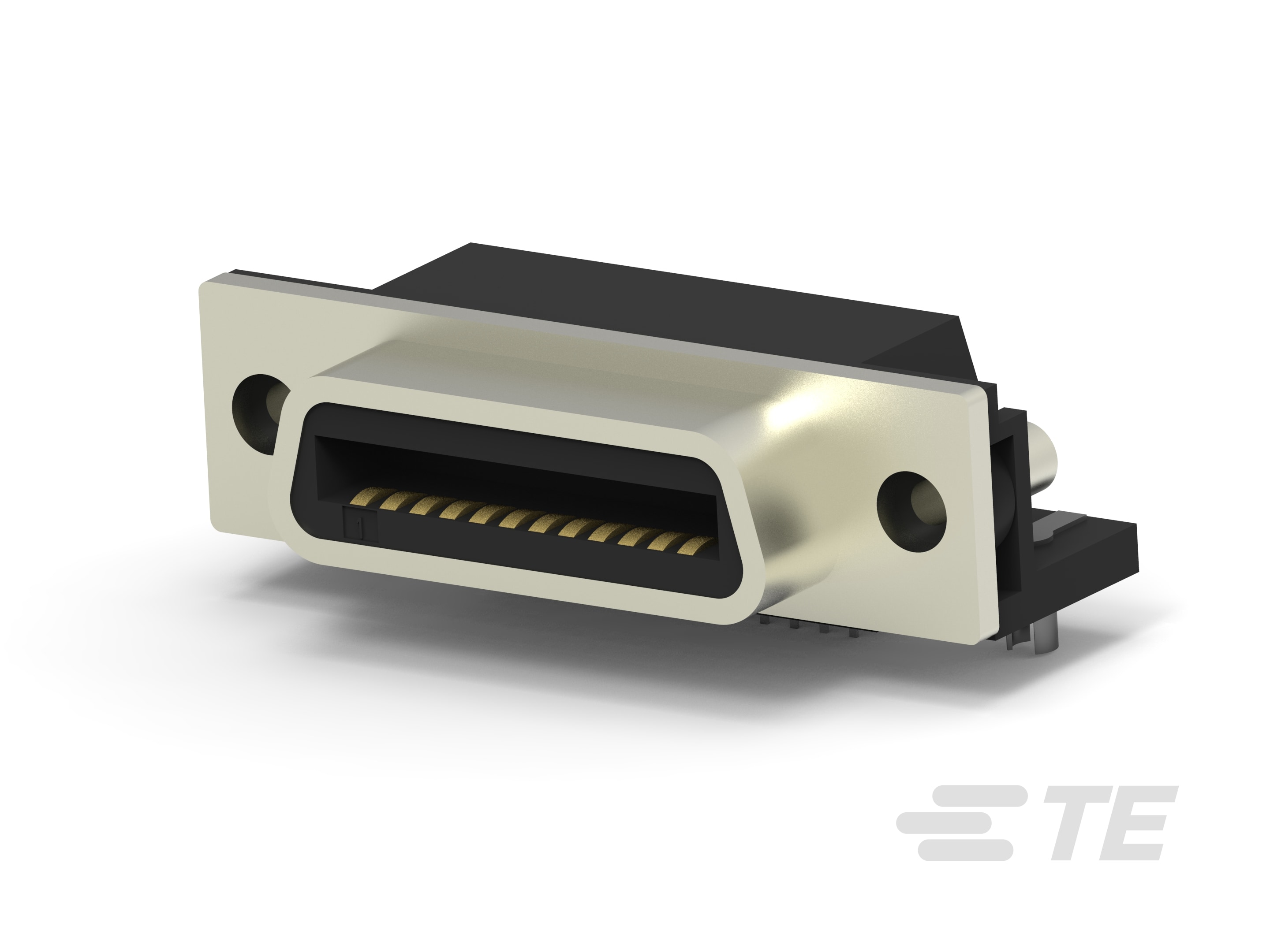

5554923-1
ActiveTE Connectivity AMP Connectors
I/O CONNECTOR, 24 CONTACTS, RECEPTACLE, WIRE TO BOARD, THROUGH HOLE, CHAMP 0.085 SERIES
5554923-1
ActiveTE Connectivity AMP Connectors
I/O CONNECTOR, 24 CONTACTS, RECEPTACLE, WIRE TO BOARD, THROUGH HOLE, CHAMP 0.085 SERIES
Description
General part information
5554923-1
24 Position D-Shaped Connector, Receptacle, Cable-to-Board, Panel Mount & Board Mount, 2.16 mm [.085 in] Centerline, Printed Circuit Board, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 5554923-1 |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Shielded, Board Lock |
| Flange Feature | Housing, Shell (6-32) |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Positions | 24 pos |
| Number of Rows | 2 |
| Termination | Solder |
