PT06E-8-4S(072)
ActiveAmphenol Aerospace Operations
MIL-26482 MS/PT/CMB CONN PLUG
PT06E-8-4S(072)
ActiveAmphenol Aerospace Operations
MIL-26482 MS/PT/CMB CONN PLUG
Description
General part information
PT06E-8-4S(072)

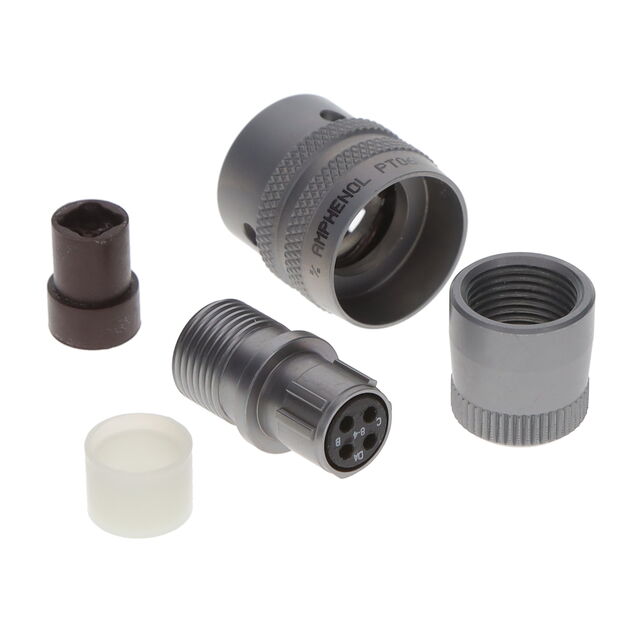

4 Position Circular Connector Plug, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | PT06E-8-4S(072) |
|---|---|
| Applications | Industrial, Instrumentation, Military, Mass Transit, Aerospace |
| Backshell Material | Aluminum |
| Color | Gray |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | N (Normal) |
| Plating | Gray Zinc Nickel |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series I |
| Shell Finish | Gray Zinc Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert Length | 8 mm |
| Shell Size - Insert Width | 4 mm |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating | 600 V |
