Specification	D38999/26TE2SN

Applications	Military, Aviation, Marine
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Fastening Type	Threaded
Mounting Type	Free Hanging (In-Line)
Number of Positions (Special)	1
Number of Positions (Standard)	38
Number of Positions (Total)	39
Orientation	N (Normal)
Position Types	Twinax
Shell Size - Insert Length	17 mm
Shell Size - Insert Width	2 mm
Shell Size (MIL)	E
Shielding	Shielded
Termination	Crimp

D38999/26TE Series

Part	Contact Finish Thickness - Mating	Applications	Contact Material	Shell Size - Insert Length	Shell Size - Insert Width	Orientation	Mounting Type	Shielding	Shell Finish	Primary Material	Shell Size (MIL)	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Features	Qualification	Shell Material	Fastening Type	Contact Finish - Mating	Number of Positions	Connector Type	Ingress Protection	Grade	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Voltage Rating	Material Flammability Rating

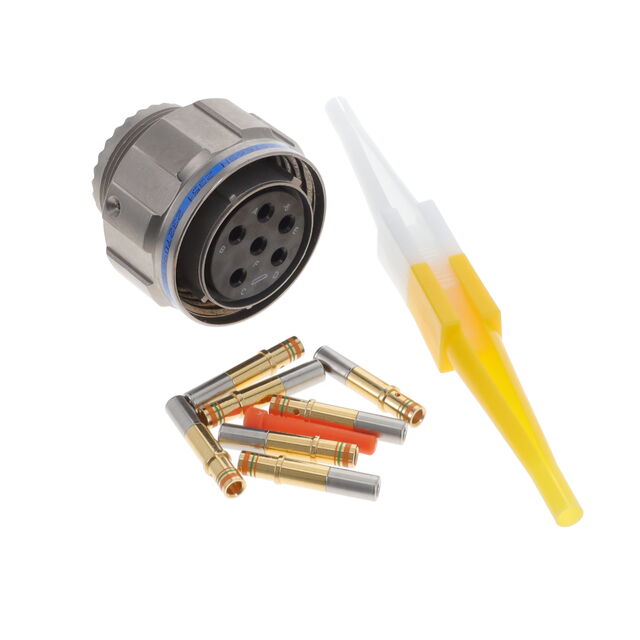

Amphenol Aerospace Operations D38999/26TE6SN	50 µin	Aviation Marine Military	Copper Alloy	17 mm	6 mm	N (Normal)	Free Hanging (In-Line)	Shielded	Durmalon™	Metal	E	Crimp	-65 °C	175 °C	Coupling Nut Self Locking	MIL-DTL-38999 Series III	Aluminum	Threaded	Gold	6	Female Sockets Plug	Environment Resistant	Military
Amphenol Aerospace Operations D38999/26TE26HN						N (Normal)	Free Hanging (In-Line)	Shielded	Durmalon™	Metal	E	Crimp	-65 °C	175 °C	Coupling Nut Self Locking	MIL-DTL-38999 Series III	Aluminum	Threaded	Gold	26	Male Pins Plug	Environment Resistant	Military	17	26
Amphenol Aerospace Operations D38999/26TE8PNL
Amphenol Aerospace Operations D38999/26TE26HN		Aviation Marine Military				N (Normal)	Free Hanging (In-Line)	Shielded			E	Crimp						Threaded	Gold	26	Male Pins Plug			17	26
Amphenol Aerospace Operations D38999/26TE99SNL
Amphenol Aerospace Operations D38999/26TE8SNL
Amphenol Aerospace Operations D38999/26TE26SN						N (Normal)	Free Hanging (In-Line)	Shielded	Durmalon™	Metal	E	Crimp	-65 °C	175 °C	Coupling Nut Self Locking	MIL-DTL-38999 Series III	Aluminum	Threaded	Gold	26	Female Sockets Plug	Environment Resistant	Military	17	26
Amphenol Aerospace Operations D38999/26TE8SN		Aviation Marine Military		17 mm	8 mm	N (Normal)	Free Hanging (In-Line)	Shielded			E	Crimp						Threaded	Gold	8	Female Sockets Plug
Amphenol Aerospace Operations D38999/26TE99SN		Aviation Marine Military				N (Normal)	Free Hanging (In-Line)	Shielded			E	Crimp						Threaded	Gold	23	Female Sockets Plug			17	99
Amphenol Aerospace Operations D38999/26TE35SN		Aviation Marine Military				N (Normal)	Free Hanging (In-Line)	Shielded	Durmalon™	Metal	E	Crimp	-65 °C	175 °C	Coupling Nut Self Locking		Aluminum	Threaded	Gold	55	Female Sockets Plug	Environment Resistant		17	35	500 V	UL94 V-0
