AVT02506E100R0KE
ActiveVishay Huntington Electric Inc.
ADJ PWR RES 100 OHM 25W CHAS MT
AVT02506E100R0KE
ActiveVishay Huntington Electric Inc.
ADJ PWR RES 100 OHM 25W CHAS MT
Description
General part information
AVT02506E100R0KE

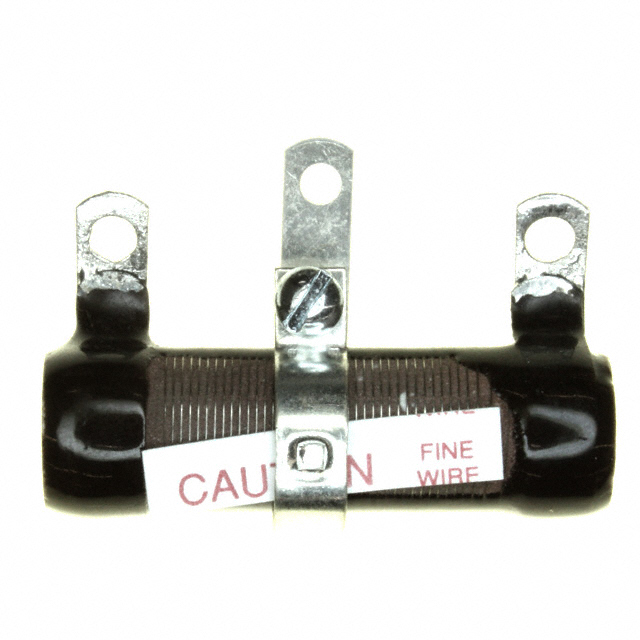

100 Ohms 25 W Slide Adjustable Power Resistor Chassis Mount 0.559" OD, 0.311" ID (14.20mm x 7.90mm) 2.000" (50.80mm) Length
Technical Specifications
Parameters and characteristics for this part
| Specification | AVT02506E100R0KE |
|---|---|
| Adjustment Type | Slide |
| Diameter (Inner) | 0.311 in |
| Diameter (Length) | 14.2 mm |
| Diameter (Outer) | 0.559 in |
| Diameter (Width) | 7.9 mm |
| Length | 2 in |
| Mounting Type | Chassis Mount |
| Package Leads | 3 Leads |
| Package Name | Radial |
| Power (Watts) | 25 W |
| Resistance | 100 Ohms |
| Termination | Solder Lug |
| Tolerance | 10 % |
