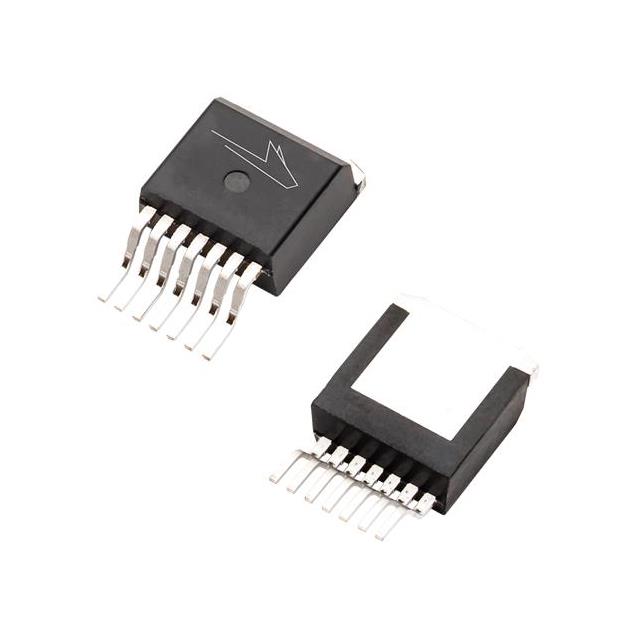

Specification	C3M0021120J2-TR

Current - Continuous Drain (Id) (Tc)	114 A
Drain to Source Voltage (Vdss)	1200 V
Drive Voltage (Max Rds On, Min Rds On)	15 V
FET Type	N-Channel
Gate Charge (Max)	169 nC
Input Capacitance (Ciss) (Max)	5100 pF, 5100 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-40 °C
Package Leads	7 Leads
Package Name	D2PAK, TO-263-7
Power Dissipation (Max)	50 W
Rds On (Max)	29 mOhm
Technology	SiC (Silicon Carbide Junction Transistor)
Vgs (Max) Negative	-8 V
Vgs (Max) Positive	19 V
Vgs(th) (Max)	3.8 V
