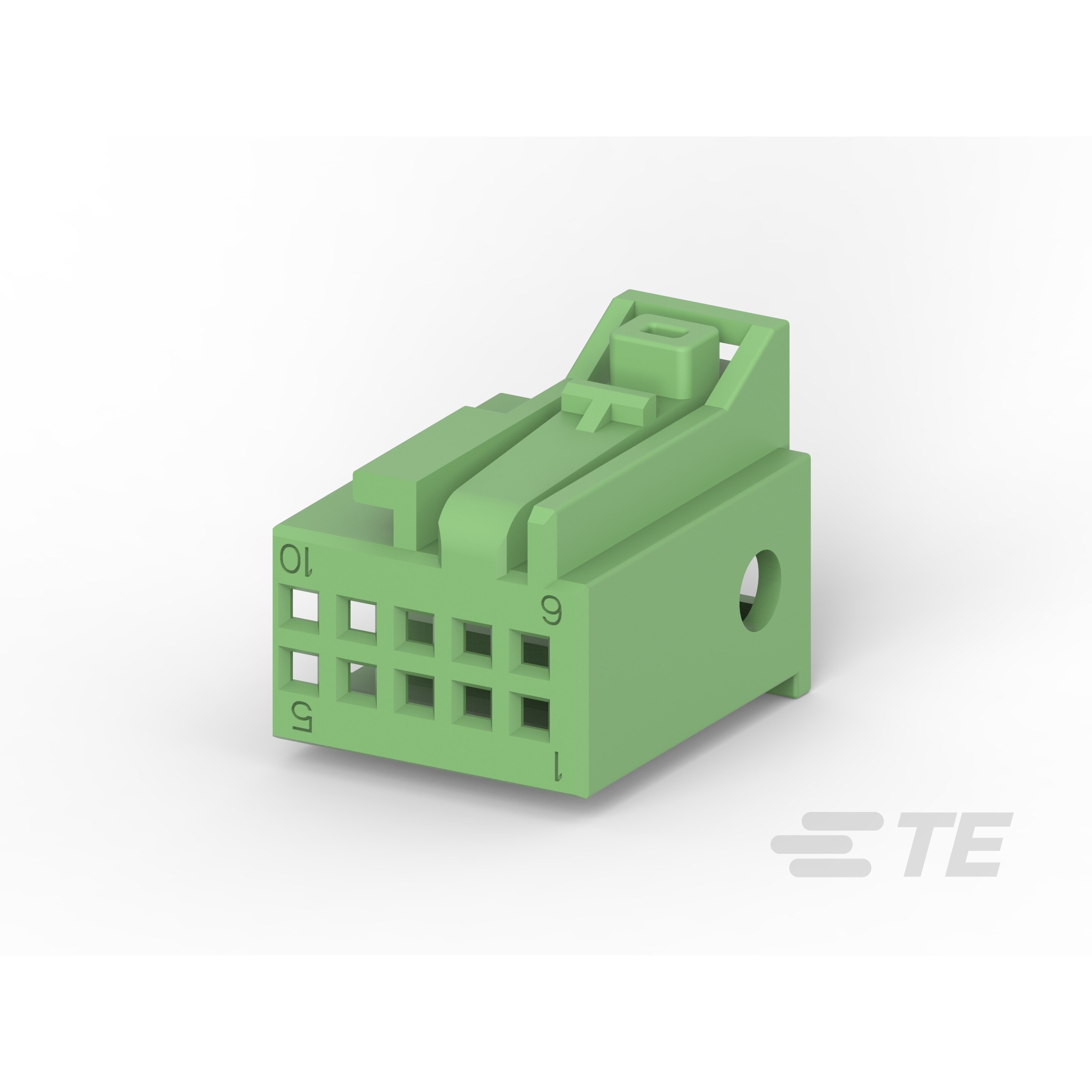

5-2177198-1
ActiveTE Connectivity AMP Connectors
10POS,MQS,REC HSG,UNSLD,COD E
5-2177198-1
ActiveTE Connectivity AMP Connectors
10POS,MQS,REC HSG,UNSLD,COD E
Description
General part information
5-2177198-1
10 Position, Green, Cover, PBT GF15, -40 – 105 °C [-40 – 221 °F]
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-2177198-1 |
|---|---|
| Color | Green |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.1 in |
| Row Spacing | 0.1 in |
