Description
General part information

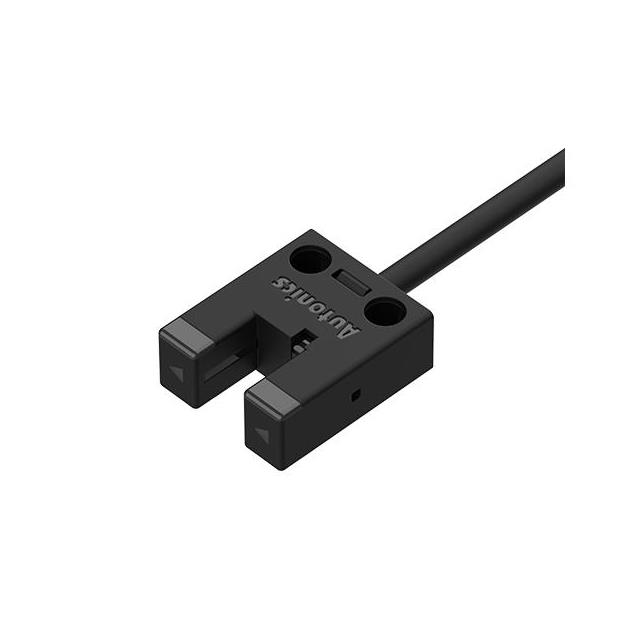

BS3-U1M
Through-Beam Optical Sensor 0.197" (5mm) NPN - Open Collector, Light-ON\Dark-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | BS3-U1M |
|---|---|
| Cable Length | 39.37 in |
| Connection Method | Cable |
| Ingress Protection | IP50 |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 940 nm |
| Operating Temperature (Max) | 55 °C, 55 °C |
| Operating Temperature (Min) | -20 °C, -20 °C |
| Output Configuration | Light-ON\Dark-ON, NPN - Open Collector |
| Response Time | 20 µs |
| Sensing Distance | 0.197 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 5 V |
