FS3L40R07W2H5FB70BPSA1

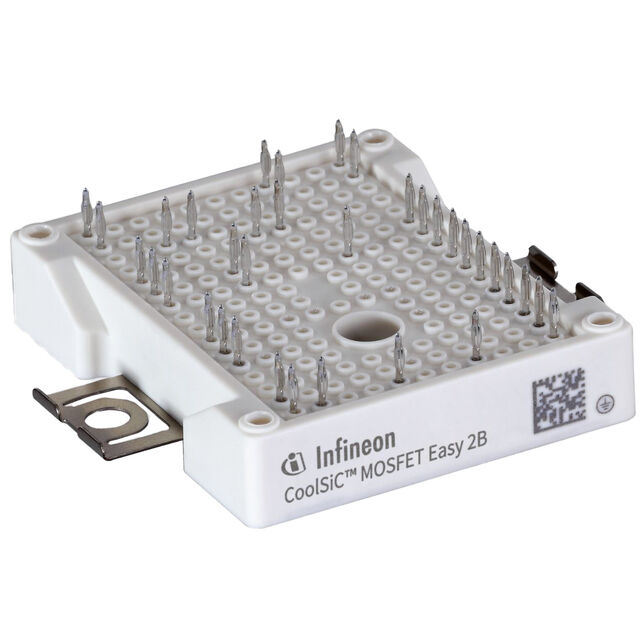

EasyPACK™ 2B650 V, 40 A 3-level NPC1 full-bridgeIGBT modulewithCoolSiC™ Schottky diode 650 V, TRENCHSTOP™ 5 H5, PressFIT Contact Technology and aluminium nitride ceramic.
Technical Specifications
Parameters and characteristics for this part
| Specification | FS3L40R07W2H5FB70BPSA1 |
|---|---|
| Configuration | Three Level Inverter |
| Current - Collector (Ic) (Max) | 20 A |
| Current - Collector Cutoff (Max) | 18 µA |
| IGBT Type | Trench Field Stop |
| Input | Standard |
| Input Capacitance (Cies) @ Vce | 1940 pF |
| Mounting Type | Chassis Mount |
| NTC Thermistor | Yes |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power - Max | 20 mW |
| Vce(on) (Max) | 1.81 V |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
