5552116-1
ActiveTE Connectivity AMP Connectors
ASSY, PLUG, 50 POS, VERT MTG
5552116-1
ActiveTE Connectivity AMP Connectors
ASSY, PLUG, 50 POS, VERT MTG
Description
General part information
5552116-1

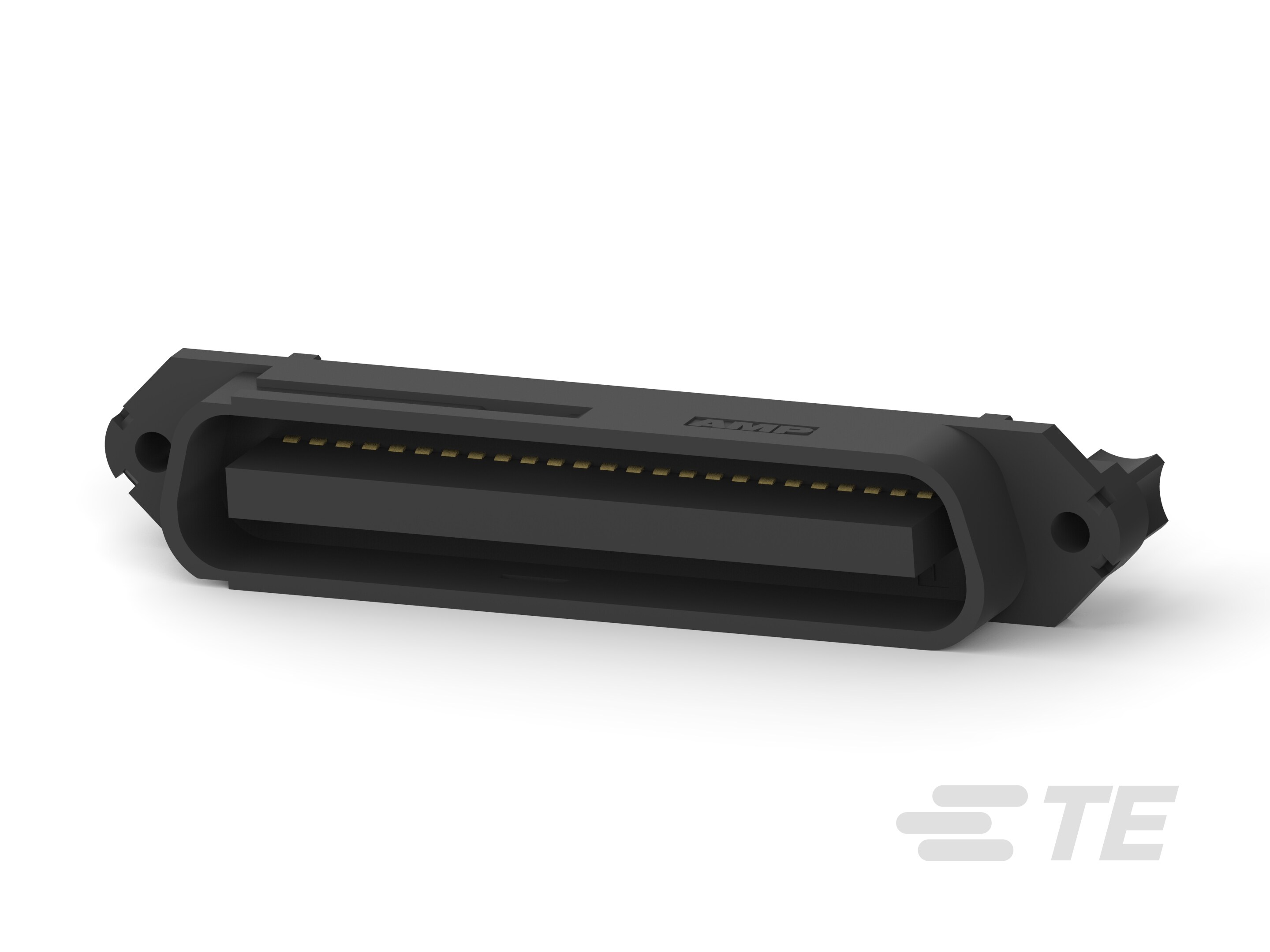

50 Position D-Shaped Connector, Plug, Cable-to-Board, Board Mount, 2.16 mm [.085 in] Centerline, Printed Circuit Board, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 5552116-1 |
|---|---|
| Connector Style | Center Strip Contacts |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Flange Feature | Board Side |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
