Description
General part information
USH1C221MHD

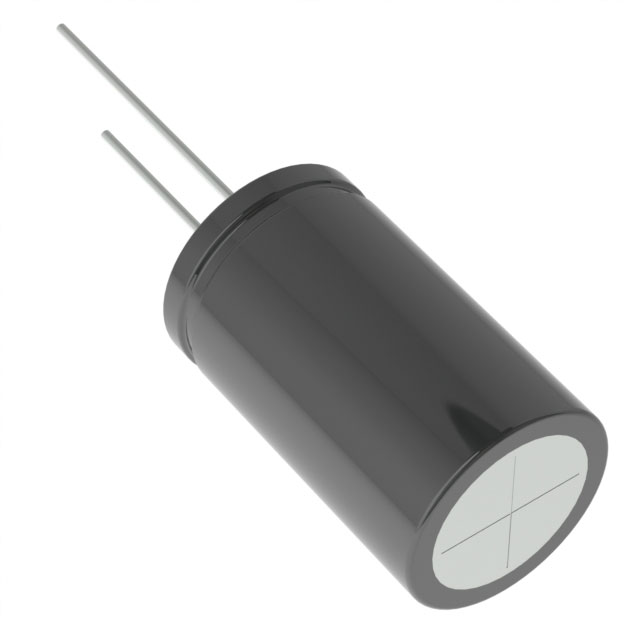

220 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | USH1C221MHD |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| Height - Seated (Max) | 1.024 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
