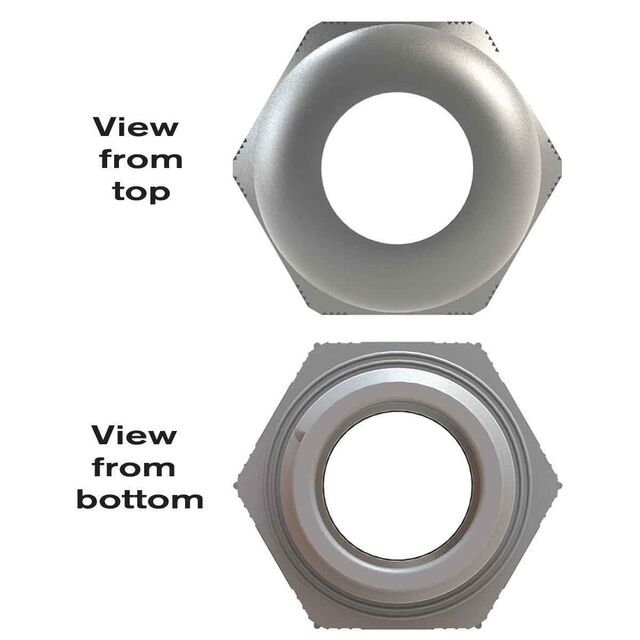

PPG-11R

Active

SAB North America

CABLE GLAND 3-7MM PG11 POLYAMIDE

Search across all available documentation for this part.

Active

SAB North America

CABLE GLAND 3-7MM PG11 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	PPG-11R

Color	Gray
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	7 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.276 in
Outside Cable Diameter (Min) [Min] [diameter]	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in
Panel Hole Size	18.6 mm
Panel Hole Size	0.732 in
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	PG11
Type	Cable Gland

CABLE GLAND 3-7MM PG11 POLYAMIDE

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Ingress Protection	Type	Thread Size	Panel Hole Size	Panel Hole Size	Color	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]
SAB North America PPG-11R	7 mm	0.276 in	8 mm	0.315 in	IP68 - Dust Tight, Waterproof	Cable Gland	PG11	18.6 mm	0.732 in	Gray	3 mm	0.118 in	100 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Gland Polyamide (PA6), Nylon 6 PG11 Gray
