100023553
ActiveTelegartner Inc
BNC JCK STR BKHD SD BAR+PANSEAL
100023553
ActiveTelegartner Inc
BNC JCK STR BKHD SD BAR+PANSEAL
Description
General part information
100023553

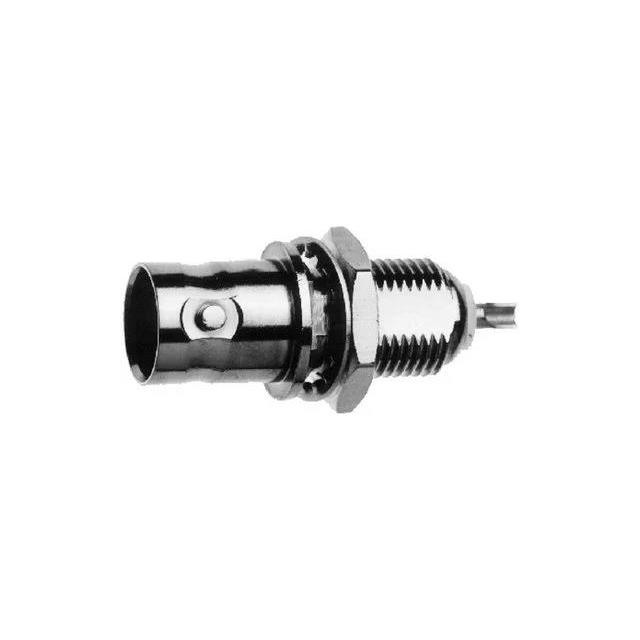

BNC Connector Jack, Female Socket 75 Ohms Panel Mount Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023553 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 4 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mating Cycles | 500 cycles |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
