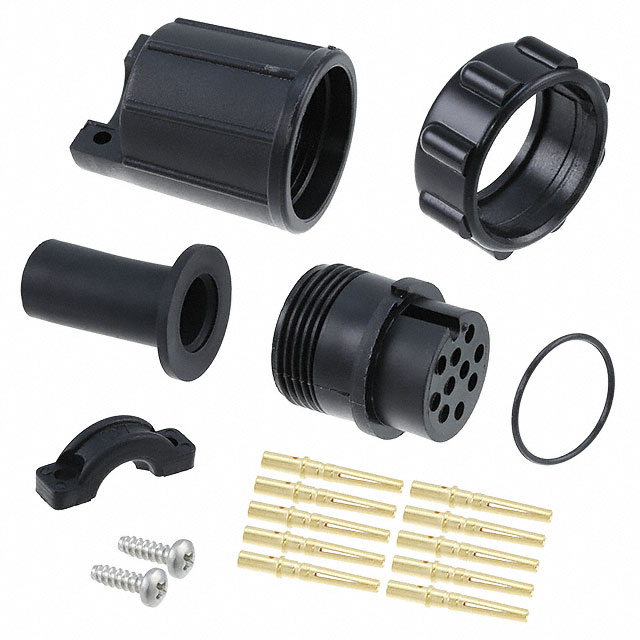

13380-10SG-331

Active

Conxall/Switchcraft

CONN PLUG FMALE 10POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 10POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Plug, Female Sockets Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONN PLUG FMALE 10POS GOLD CRIMP

Part	Contact Finish - Mating	Number of Positions	Features	Primary Material	Fastening Type	Contact Material	Shielding	Connector Type	Voltage Rating	Mounting Type	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Color	Backshell Material, Plating	Ingress Protection	Termination	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Conxall/Switchcraft 13380-10SG-321	Gold	10	Backshell, Cable Clamp	Plastic	Bayonet Lock	Brass	Unshielded	Female Sockets, Plug	600 V	Free Hanging (In-Line)	Keyed	-40 °C	115 °C	0.21 in	5.33 mm	6.35 mm	0.25 in	Black	Nylon, Polyamide (PA)	Weathertight	Crimp
Conxall/Switchcraft 13380-10SG-331	Gold	10	Backshell, Cable Clamp	Plastic	Bayonet Lock	Brass	Unshielded	Female Sockets, Plug	600 V	Free Hanging (In-Line)	Keyed	-40 °C	115 °C					Black	Nylon, Polyamide (PA)	Weathertight	Crimp	9.65 mm	0.31 in, 0.38 in	7.87 mm
Conxall/Switchcraft 13380-10SG-326	Gold	10	Backshell, Cable Clamp	Plastic	Bayonet Lock	Brass	Unshielded	Female Sockets, Plug	600 V	Free Hanging (In-Line)	Keyed	-40 °C	115 °C					Black	Nylon, Polyamide (PA)	Weathertight	Crimp				0.26 in	7.62 mm	0.3 in	6.6 mm
