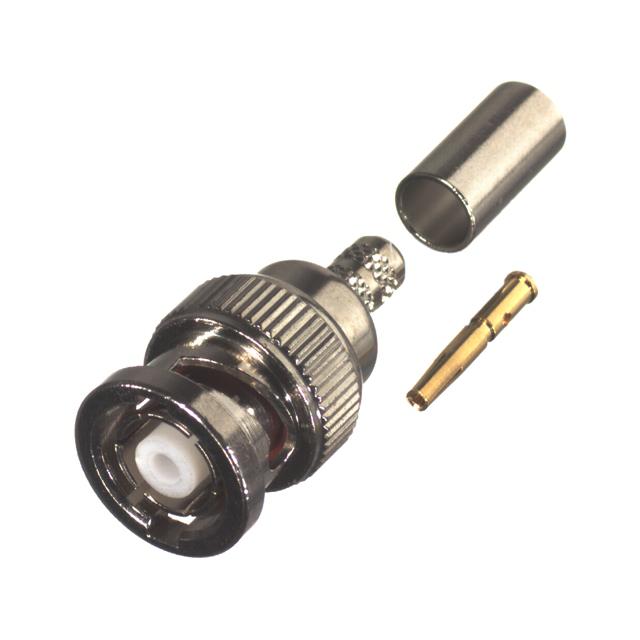

RP-1106-C1

Active

RF Industries

RP BNC MALE CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

RP BNC MALE CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RP-1106-C1

Body Finish	Nickel
Body Material	Brass
Cable Group	142, 223
Cable Group	RG-55
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	RP-BNC
Connector Type	Plug, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Body Finish	Mounting Type	Connector Style	Body Material	Center Contact Material	Fastening Type	Voltage Rating	Contact Termination	Housing Color	Shield Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Frequency - Max [Max]	Dielectric Material	Impedance	Cable Group	Cable Group	Center Contact Plating
RF Industries RP-1106-C1	Nickel	Free Hanging (In-Line)	RP-BNC	Brass	Phosphor Bronze	Bayonet Lock	500 V	Crimp	Silver	Crimp	Female Socket Plug	-65 ░C	165 °C	1	4 GHz	Polytetrafluoroethylene (PTFE)	50 Ohms	142 223	RG-55	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-BNC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
