RWM08451002JB25E1
ActiveVishay Dale

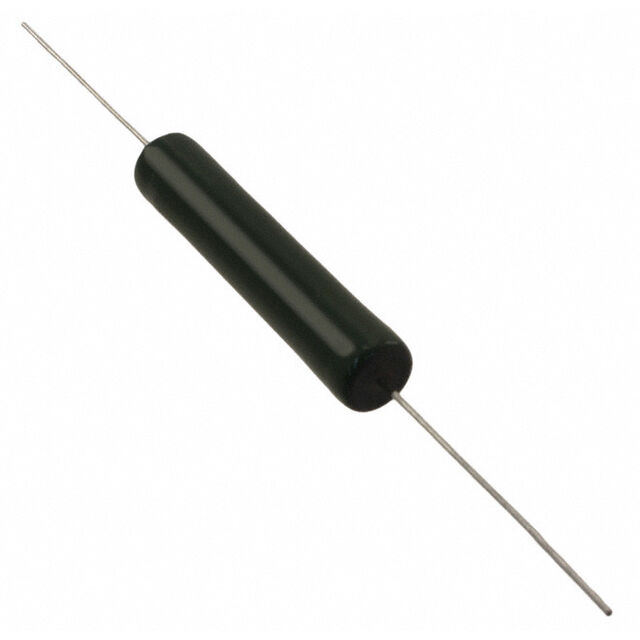

RESISTOR 10KOHM 11W 5% WIREWOUND
RWM08451002JB25E1
ActiveVishay Dale
RESISTOR 10KOHM 11W 5% WIREWOUND
Description
General part information
RWM08451002JB25E1
10 kOhms ±5% 11W Through Hole Resistor Axial Flame Proof, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | RWM08451002JB25E1 |
|---|---|
| Composition | Wirewound |
| Features | Safety, Flame Proof |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 350 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 11 W |
| Resistance | 10 kOhm |
| Size / Dimension Diameter | 0.37 in |
| Size / Dimension Length | 1.803 in |
| Temperature Coefficient | 75 ppm/¯C |
| Tolerance | 5 % |
