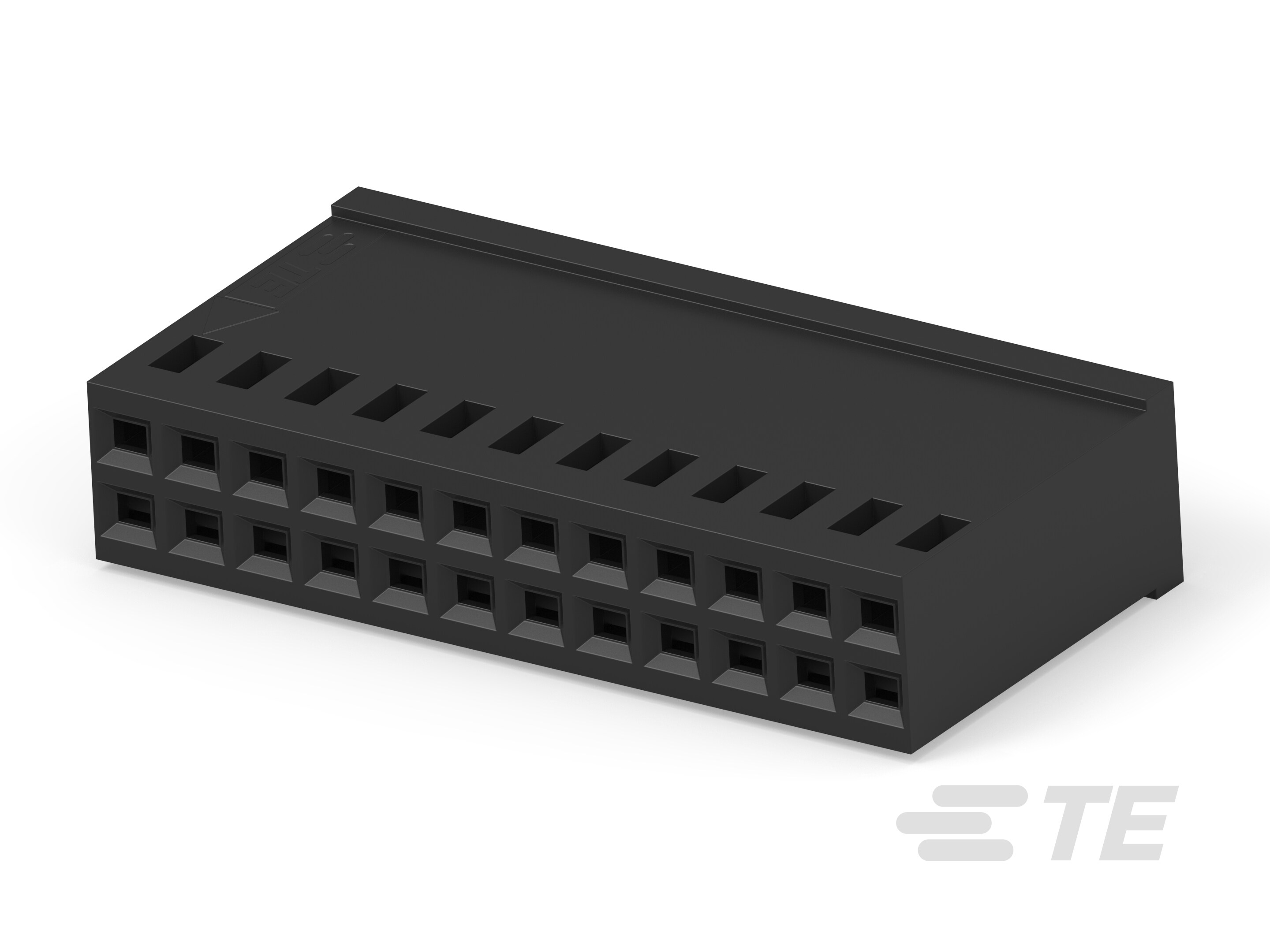

Specification	1-87456-9

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)
Number of Positions	24 pos
Number of Rows	2
Pitch	0.1 in
Row Spacing	0.1 in

AMPMODU IV/V Series

...

Part	Contact Termination	Contact Finish	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Pin or Socket	Contact Finish Thickness	Pitch	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Contact Type	Insulation Material	Row Spacing	Connector Type	Number of Rows	Number of Positions	Features	Color	Note	Fastening Type	Insulation Height	Pitch - Mating	Contact Finish Thickness - Mating	Style	Termination	Number of Positions Loaded	Contact Finish - Post	Contact Finish - Mating	Row Spacing - Mating	Contact Length - Post	Insulation Color	Contact Shape	Contact Material	Contact Finish Thickness - Post
TE Connectivity AMP Connectors 167022-3	Crimp	Tin	32 AWG	27.5 AWG	Socket	78.7 µin
TE Connectivity AMP Connectors 102387-4	Crimp						0.1 in	105 °C	-65 °C	Free Hanging (In-Line)	Female Socket	Thermoplastic	0.1 in	Receptacle	2	20	Polarizing Key	Black	Contacts Not Included
TE Connectivity AMP Connectors 87631-5	Crimp						0.1 in	105 °C	-65 °C	Free Hanging (In-Line)	Female Socket	Thermoplastic	0.1 in	Receptacle	2	10		Black	Contacts Not Included	Detent Lock
TE Connectivity AMP Connectors 1-532956-6										Right Angle Through Hole	Female Socket			Receptacle	2	100	Guide Pin Ears			Push-Pull	0.238 in	0.1 in	30 µin	Board	Solder	All	Tin-Lead	Gold	0.1 in	0.115 in	Black
TE Connectivity AMP Connectors 5-532955-8										Right Angle Through Hole	Female Socket			Receptacle	2	50	Guide Pin Ears			Push-Pull	0.238 in	0.1 in	15 µin	Board	Solder	All	Tin	Gold	0.1 in	0.115 in	Black
TE Connectivity AMP Connectors 2-87631-1	Crimp						0.1 in	105 °C	-65 °C	Free Hanging (In-Line)	Female Socket	Glass Filled Nylon Polyamide (PA)	0.1 in	Receptacle	2	26		Black		Detent Lock
TE Connectivity AMP Connectors 534267-8										Through Hole	Female Socket	Glass Filled Polyester		Bottom or Top Entry Receptacle	2	60				Push-Pull	0.265 in	0.1 in	30 µin	Board	Solder	All	Tin-Lead	Gold	0.1 in	0.125 in	Black	Square	Phosphor Bronze	150 µin
TE Connectivity AMP Connectors 1718288-6	Crimp						0.1 in	105 °C	-65 °C	Free Hanging (In-Line)	Female Socket	Nylon Polyamide (PA)	0.1 in	Receptacle	2	6		Black	Contacts Not Included	Latch Lock
TE Connectivity AMP Connectors 3-87456-8	Crimp						0.1 in	105 °C	-65 °C	Free Hanging (In-Line)	Female Socket	Glass Filled Nylon Polyamide (PA)	0.1 in	Receptacle	2	44		Black	Contacts Not Included
TE Connectivity AMP Connectors 534267-7										Through Hole	Female Socket			Bottom or Top Entry Receptacle	2	40				Push-Pull	0.265 in	0.1 in	30 µin	Board	Solder	All	Tin-Lead	Gold	0.1 in	0.125 in	Black
