Description
General part information

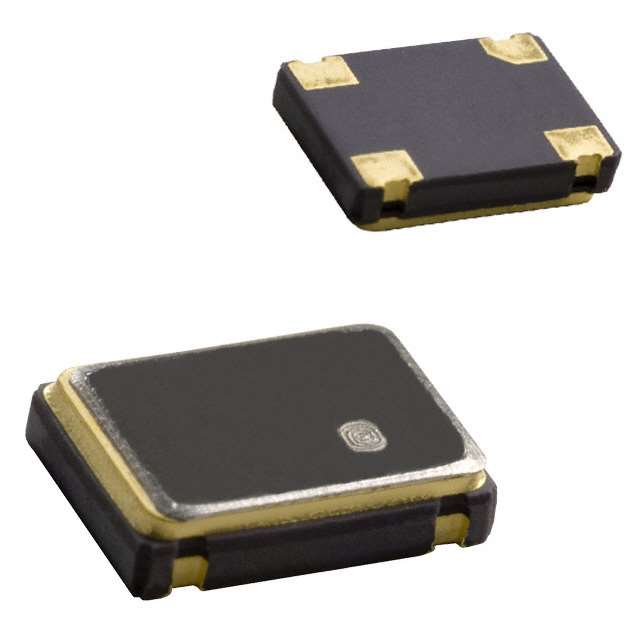

ECS-P75-AN
XO (Standard) HCMOS 1 MHz ~ 150 MHz Programmable Oscillator 5V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-P75-AN |
|---|---|
| Available Frequency Range (Maximum) | 150 MHz |
| Available Frequency Range (Minimum) | 1 MHz |
| Base Resonator | Crystal |
| Current - Supply (Max) | 45 mA |
| Frequency Stability (Total) | 100 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.067 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 7 mm |
| Package Name | 4-SMD |
| Package Width | 5 mm |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) |
| Size / Dimension Length | 0.276 in |
| Size / Dimension Width | 0.197 in |
| Type | XO (Standard) |
| Voltage - Supply | 5 VDC |
