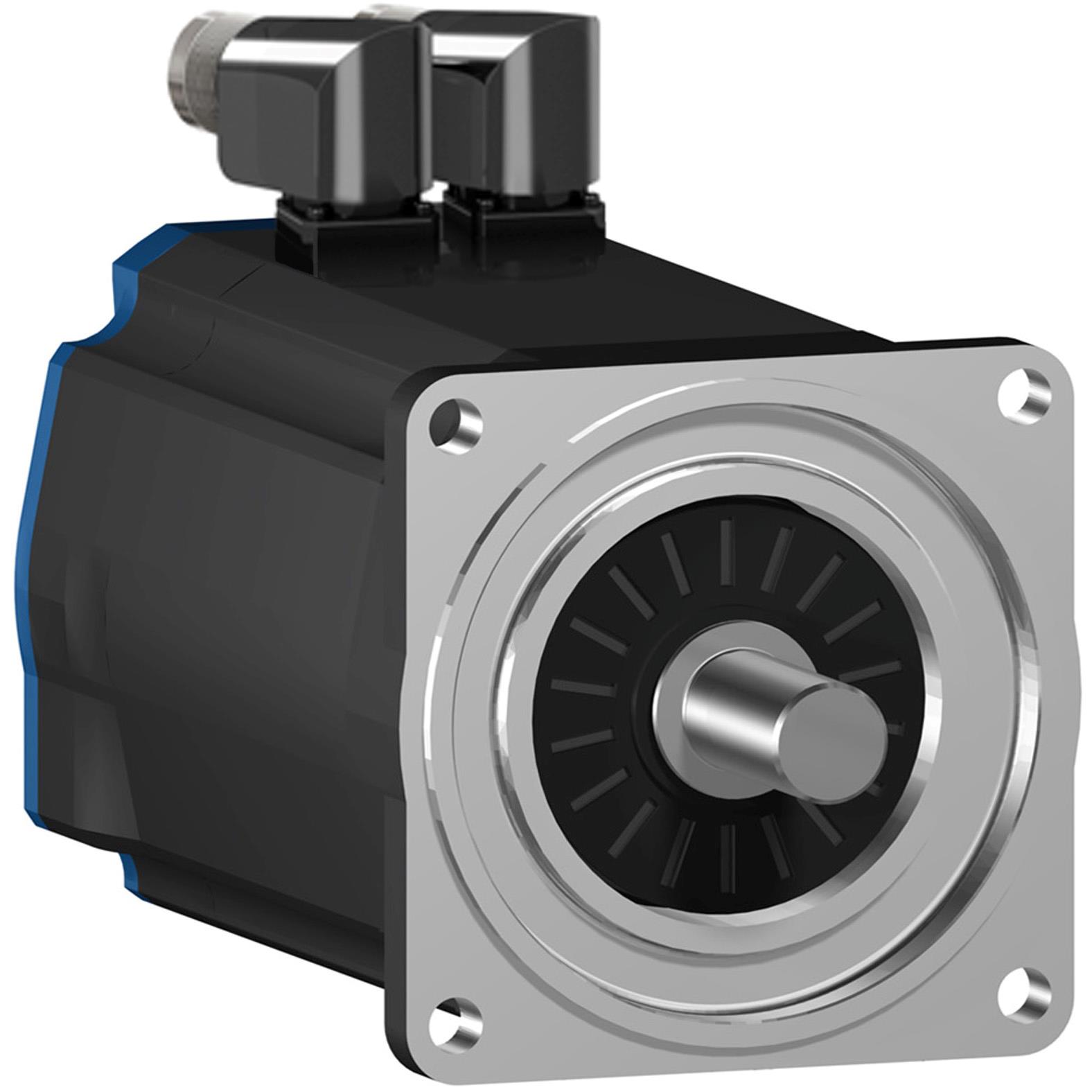

BSH1002P01A2A
ActiveSCHNEIDER ELECTRIC
MOTOR 100 IP40 SMOOTH INC NOBRK
BSH1002P01A2A
ActiveSCHNEIDER ELECTRIC
MOTOR 100 IP40 SMOOTH INC NOBRK
Description
General part information
BSH1002P01A2A
AC Motor Servomotor 6000 RPM 2.15kW 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BSH1002P01A2A |
|---|---|
| Diameter - Shaft | 0.75 in |
| Function | Servomotor |
| Length - Shaft and Bearing | 1.57 in |
| Mounting Hole Spacing | 3.74 in |
| Power - Rated | 2.15 kW |
| RPM | 6000 RPM |
| Size / Dimension Length | 3.937 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 3.937 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 5800 mNm |
| Torque - Rated (oz-in) | 821.3 oz-in |
| Type | AC Motor |
| Voltage - Rated | 480 VAC |
