WAU20-2000
ActiveTriad Magnetics
AC/AC POWER SUPPLY, ADJUSTABLE, FIXED, 1 OUTPUT, 120 V, 40 W, 20 VAC, 2 A
WAU20-2000
ActiveTriad Magnetics
AC/AC POWER SUPPLY, ADJUSTABLE, FIXED, 1 OUTPUT, 120 V, 40 W, 20 VAC, 2 A
Description
General part information
WAU20-2000

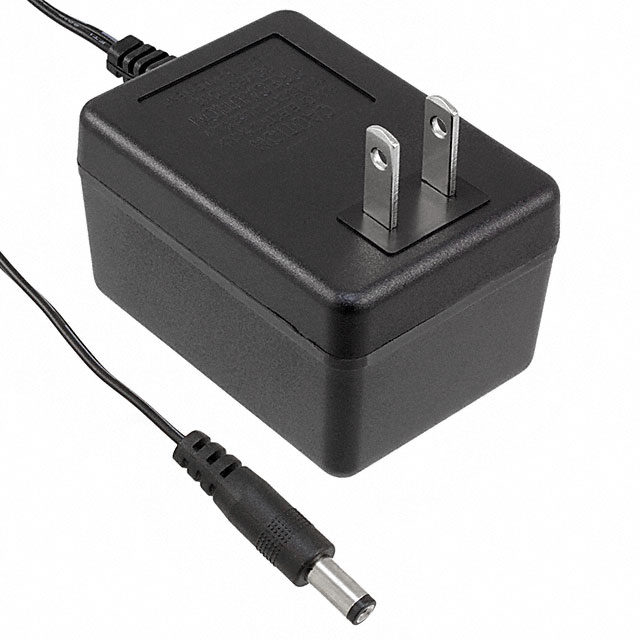

20VAC 2A AC/AC External Wall Mount Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | WAU20-2000 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cUL, UL |
| Cord Length | 72 in |
| Current - Output (Max) | 2 A |
| Form | Wall Mount |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -10 °C |
| Output Connector | Barrel Plug |
| Output Connector I.D. | 2.1 mm |
| Output Connector Length | 11 mm |
| Output Connector O.D. | 5.5 mm |
| Power (Watts) | 40 W |
| Region Utilized | North America |
| Size / Dimension Height | 3.35 in |
| Size / Dimension Length | 2.17 in |
| Size / Dimension Width | 2.68 in |
| Voltage - Input | 120 VAC |
| Voltage - Output | 20 V |
