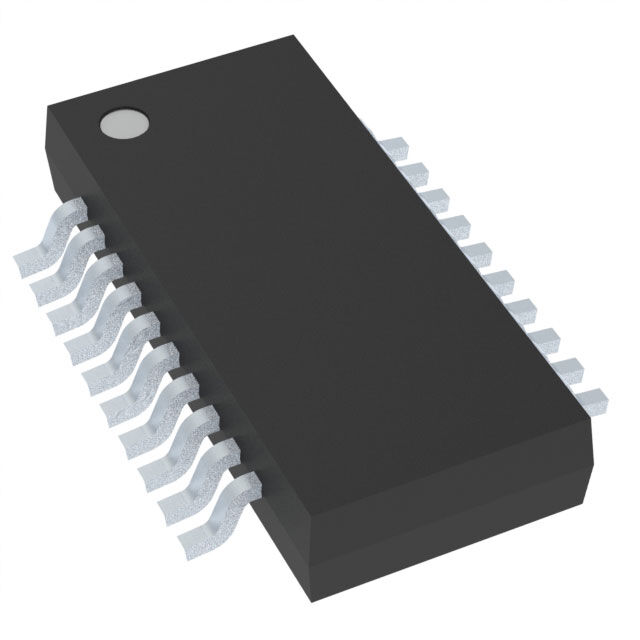

VSSR2001102GUF
ActiveVishay Dale Thin Film
RES ARRAY 19 RES 1K OHM 20SSOP
VSSR2001102GUF
ActiveVishay Dale Thin Film
RES ARRAY 19 RES 1K OHM 20SSOP
Description
General part information
VSSR2001102GUF
1k Ohm ±2% 100mW Power Per Element Bussed 19 Resistor Network/Array ±100ppm/°C 20-SSOP (0.154", 3.90mm Width)
Technical Specifications
Parameters and characteristics for this part
| Specification | VSSR2001102GUF |
|---|---|
| Circuit Type | Bussed |
| Height - Seated (Max) | 0.069 in |
| Mounting Type | Surface Mount |
| Number of Pins | 20 |
| Number of Resistors | 19 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package Length | 0.154 in |
| Package Name | 20-SSOP |
| Package Width | 3.9 mm |
| Power Per Element | 100 mW |
| Resistance | 1 kOhm |
| Size / Dimension Length | 0.341 in |
| Size / Dimension Width | 0.154 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 2 % |
