Description

General part information

T4052325004-003

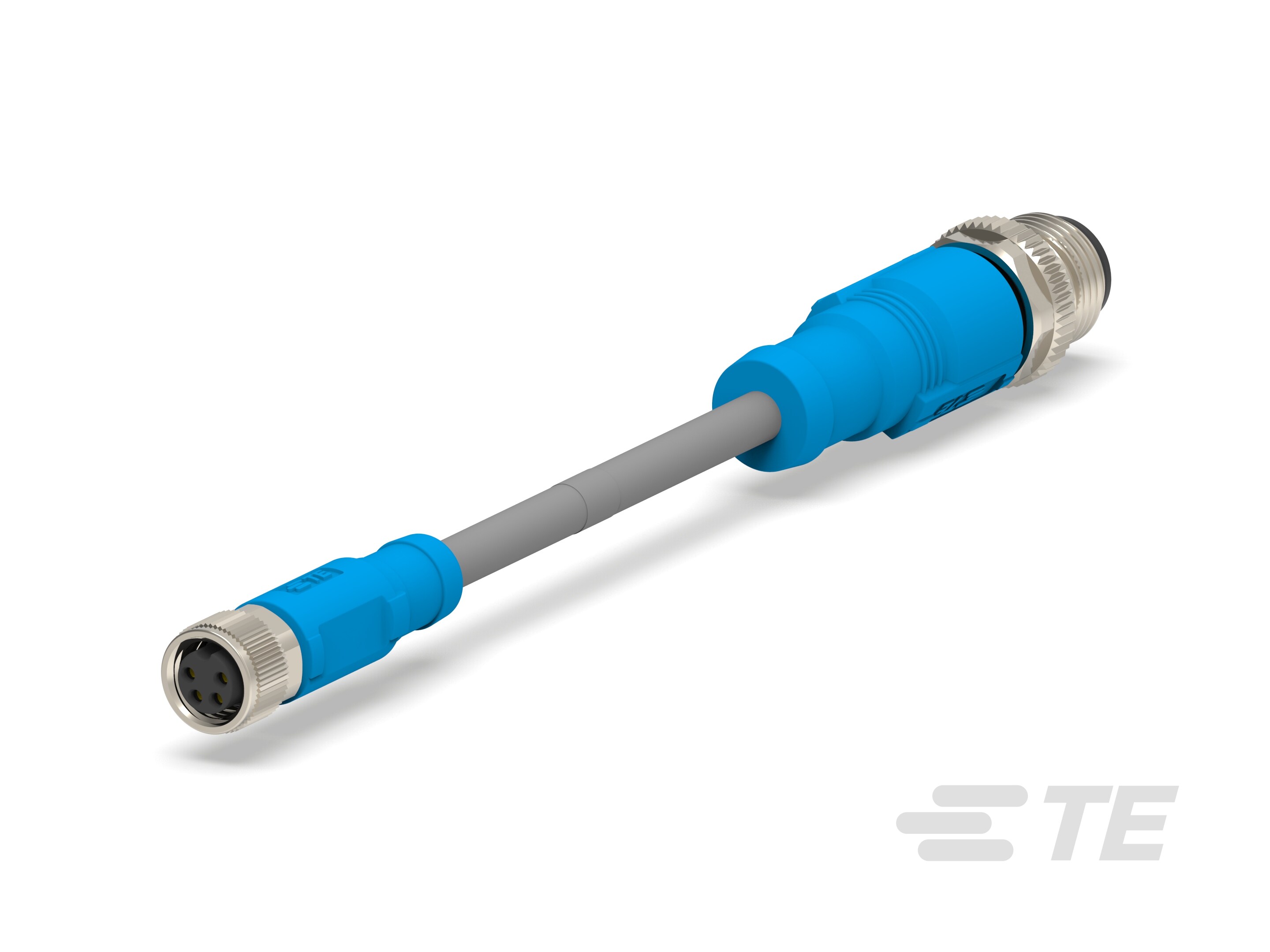

M8 to M12 Cable Assembly, 4 Position, Cable Assembly Length 1.5 m [4.9 ft], Sensor/Actuator, A Code, M8 Socket End A, M12 Plug End B, Double Ended

Technical Specifications

Parameters and characteristics for this part

SpecificationT4052325004-003
1st Connector GenderMale Pins
1st Connector Mounting TypeFree Hanging (In-Line)
1st Connector Number of Positions4 positions
1st Connector Number of Positions LoadedAll
1st Connector OrientationA
1st Connector Shell Size - InsertM12
1st Connector TypeReceptacle
2nd Connector GenderFemale Sockets
2nd Connector Mounting TypeFree Hanging (In-Line)
2nd Connector Number of Positions4
2nd Connector Number of Positions LoadedAll
2nd Connector OrientationA
2nd Connector Shell Size - Insert (Code)M8
2nd Connector TypePlug
Assembly ConfigurationStandard
Cable MaterialPolyurethane (PUR)
Cable TypeRound
ColorGray
Ingress Protection DescriptionWaterproof, Dust Tight
Ingress Protection IP RatingIP67
Length4.92 ft
ShieldingUnshielded
UsageIndustrial Environments
