LCCA30545-FT2
ActivePasternack
SMA MRA TO N F USING LC085TB, 2
LCCA30545-FT2
ActivePasternack
SMA MRA TO N F USING LC085TB, 2
Description
General part information
LCCA30545-FT2

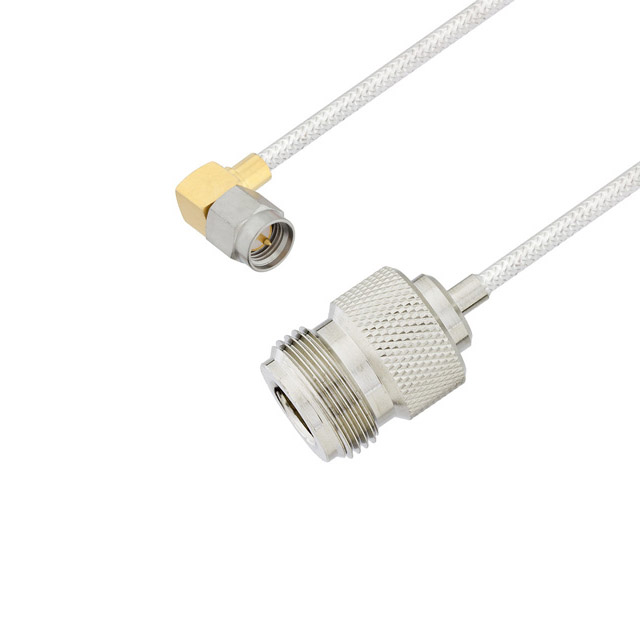

Cable Assembly Coaxial SMA to N-Type LC085TB 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30545-FT2 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | LC085TB |
| Color | Silver |
| Frequency - Max | 10 GHz |
| Length | 24 in |
| Style | SMA, N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
