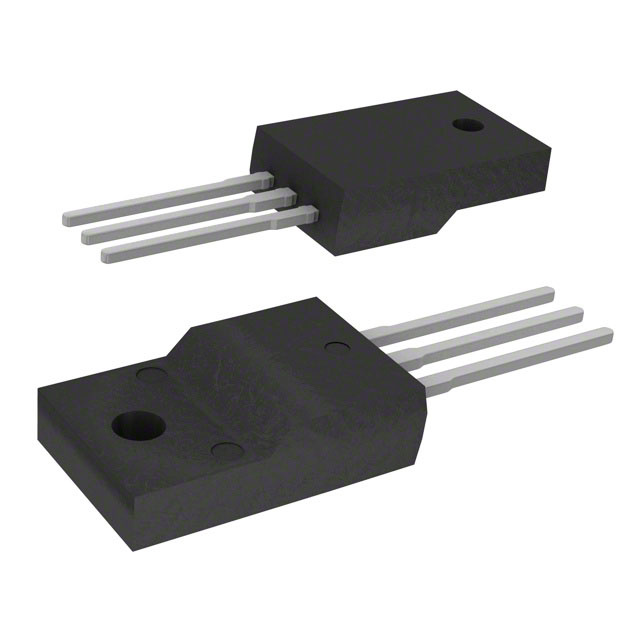

T820-800W
ActiveTRIAC ALTERNISTOR 800V ISOWATT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T820-800W | T820 Series |
|---|---|---|
| - | - | |
| Configuration | Single | Single |
| Current - Gate Trigger (Igt) (Max) [Max] | 20 mA | 20 mA |
| Current - Hold (Ih) (Max) [Max] | 35 mA | 25 - 35 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | - | 60 - 63 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Max] | 105 A | 105 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Min] | 100 A | 100 A |
| Current - On State (It (RMS)) (Max) [Max] | 8 A | 8 A |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | ISOWATT220AB-3 | TO-220-3, ISOWATT220AB-3 |
| Supplier Device Package | ISOWATT220AB | TO-220, ISOWATT220AB |
| Triac Type | Alternistor - Snubberless | Alternistor - Snubberless |
| Voltage - Gate Trigger (Vgt) (Max) [Max] | 1.3 V | 1.3 V |
| Voltage - Off State | 800 V | 600 - 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
T820 Series
8A Snubberless™ and logic level Triacs
| Part | Current - On State (It (RMS)) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Non Rep. Surge 50, 60Hz (Itsm) | Configuration | Voltage - Gate Trigger (Vgt) (Max) [Max] | Triac Type | Mounting Type | Package / Case | Voltage - Off State | Current - Gate Trigger (Igt) (Max) [Max] | Supplier Device Package | Current - Hold (Ih) (Max) [Max] | Current - Non Rep. Surge 50, 60Hz (Itsm) [Max] | Current - Non Rep. Surge 50, 60Hz (Itsm) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics T820T-6I | |||||||||||||||
STMicroelectronics T820T-6I | 8 A | -40 °C | 125 ¯C | 60 A, 63 A | Single | 1.3 V | Alternistor - Snubberless | Through Hole | TO-220-3 | 600 V | 20 mA | TO-220 | 25 mA | ||
STMicroelectronics T820T-6I | |||||||||||||||
STMicroelectronics T820-800W | 8 A | -40 °C | 125 ¯C | Single | 1.3 V | Alternistor - Snubberless | Through Hole | ISOWATT220AB-3 | 800 V | 20 mA | ISOWATT220AB | 35 mA | 105 A | 100 A |
Description
General part information
T820 Series
Available in through-hole, the T8T series of Triacs can be used as on/off or phase angle control function in general purpose ac switching where high commutation capability is required.
This series can be designed in many value sensitive appliances thanks to the parameters guidance provided in the following pages.
Provides insulation rated at 2500 V rms (TO-220AB insulated package).
