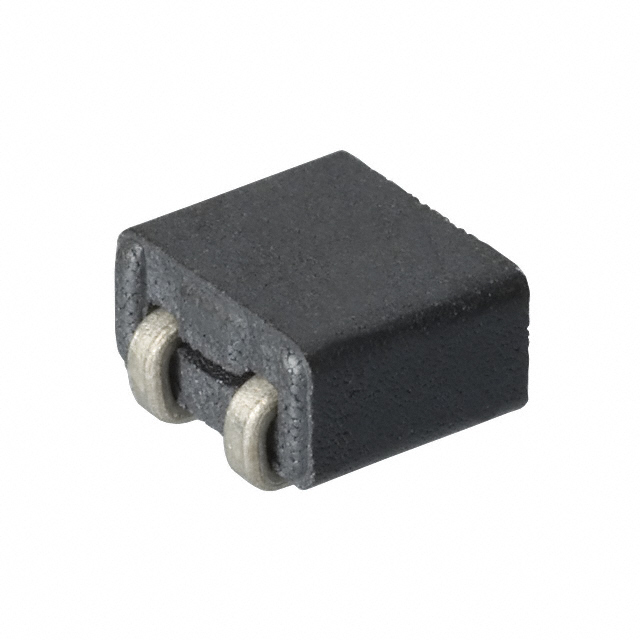

CM2021Y330R-10
ActiveLaird Technologies EMI
CMC 15A 2LN 33 OHM SMD
CM2021Y330R-10
ActiveLaird Technologies EMI
CMC 15A 2LN 33 OHM SMD
Description
General part information
CM2021Y330R-10
2 Line Common Mode Choke Surface Mount 33 Ohms @ 100 MHz 15A DCR 0.75mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM2021Y330R-10 |
|---|---|
| Current Rating (Max) | 15 A |
| DC Resistance (DCR) (Max) | 0.75 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.15 in |
| Impedance | 33 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | 2322 (5956 Metric) |
| Size / Dimension Length | 0.231 in |
| Size / Dimension Width | 0.22 in |
| Voltage Rating - DC | 280 V |
