SFM10003FMANHWS
ActiveVishay Dale

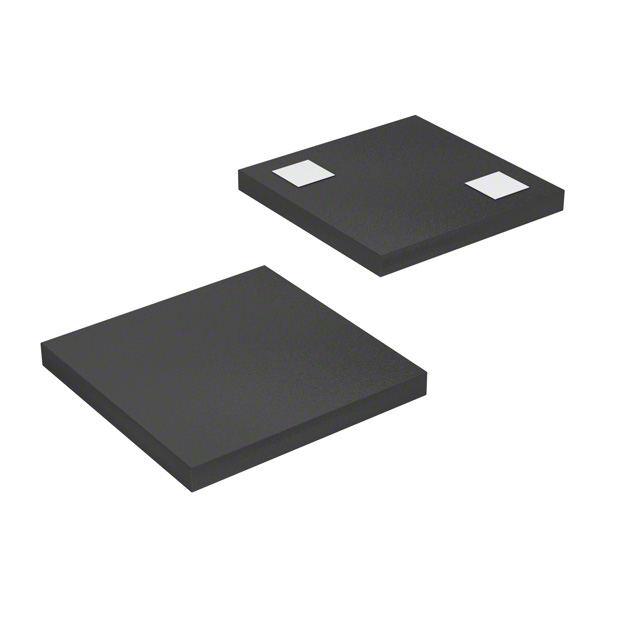

RES SMD 1M OHM 1% 1/4W 0202
SFM10003FMANHWS
ActiveVishay Dale
RES SMD 1M OHM 1% 1/4W 0202
Description
General part information
SFM10003FMANHWS
1 MOhms ±1% 0.25W, 1/4W Chip Resistor 0202 (0505 Metric) Moisture Resistant Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | SFM10003FMANHWS |
|---|---|
| Composition | Thin Film |
| Features | Moisture Resistant |
| Height - Seated (Max) | 0.012 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0202 (0505 Metric) |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 1 MOhm |
| Size / Dimension Length | 0.02 in |
| Size / Dimension Width | 0.02 in |
| Temperature Coefficient | 250 ppm/°C |
| Temperature Coefficient (Highest) | 250 ppm/°C |
| Temperature Coefficient (Lowest) | -250 ppm/°C |
| Tolerance | 1 % |
