P055-010-CHN1
ObsoleteEaton Tripp Lite
GB 15934-2008 TO C13, CHINA COMP
P055-010-CHN1
ObsoleteEaton Tripp Lite
GB 15934-2008 TO C13, CHINA COMP
Description
General part information
P055-010-CHN1

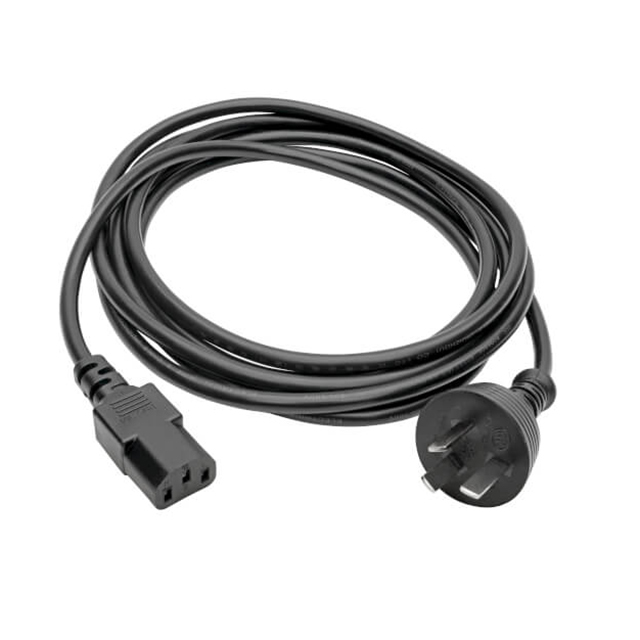

10.00' (3.05m) Power Cord Black GB2099 To IEC 320-C13 Polyvinyl Chloride (PVC)
Technical Specifications
Parameters and characteristics for this part
| Specification | P055-010-CHN1 |
|---|---|
| 1st Connector | GB2099 |
| 2nd Connector | IEC 320-C13 |
| Approval Agency Marking | cUL, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | Polyvinyl Chloride (PVC) |
| Current Rating | 10 A |
| Length | 10 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 5 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 250 V |
| Wire Gauge | 17 AWG |
