6-2301994-9

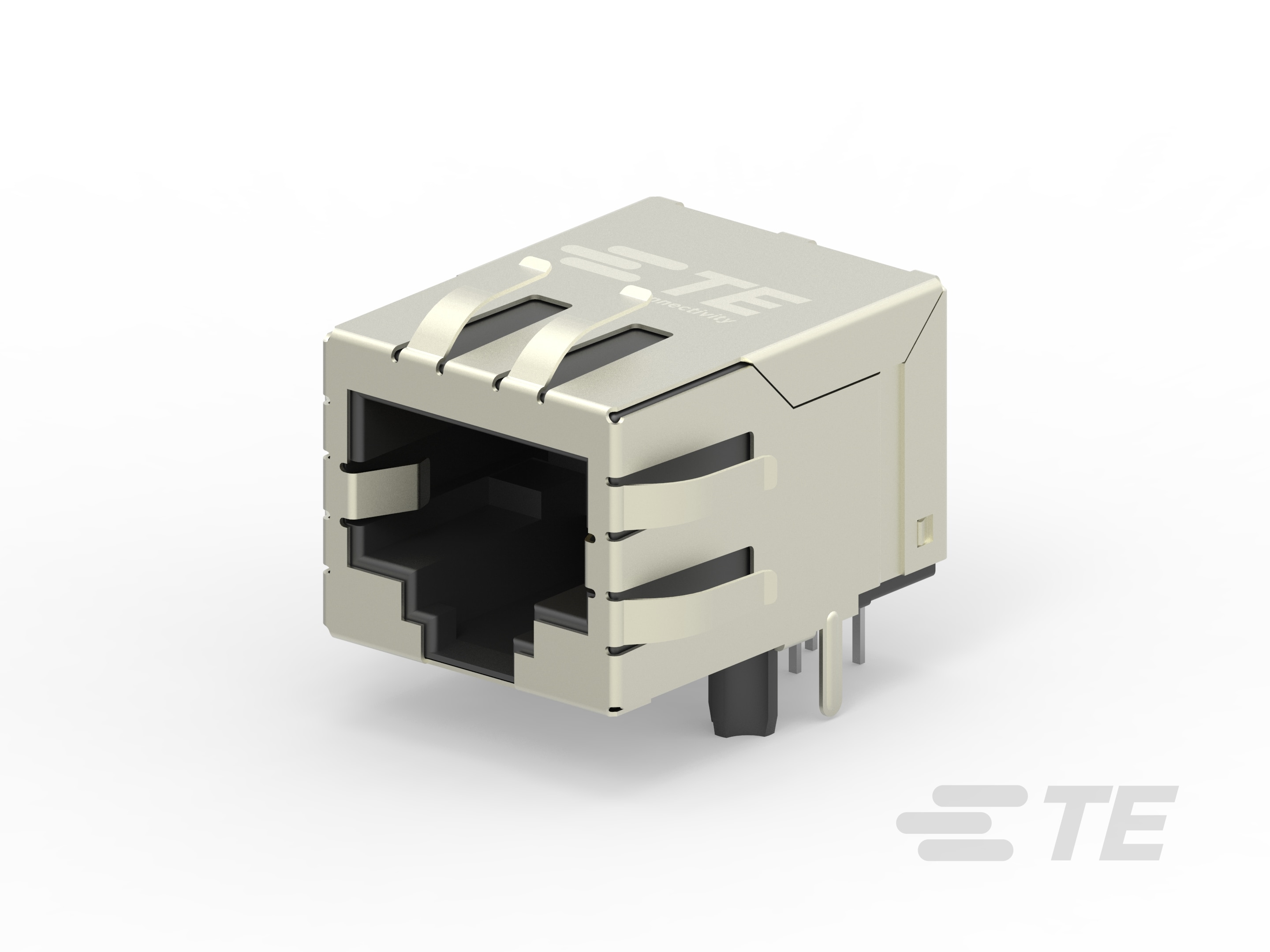

RJ45 with Integrated Magnetics Connector, Single Port, 1 x 1, Jack, Shielded, Cat 5, Standard - Latch Down, 8 Position, Industrial RJ45 Mag Jack
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-2301994-9 |
|---|---|
| Applications | 10/100 Base-TX, AutoMDIX |
| Connector Type | RJ45 |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Height Above Board | 0.532 in |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 4 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shielding | EMI Finger, Shielded |
| Tab Direction | Down |
| Termination | Solder |
