GG1000
ActiveEaton - Electronics Division
1000AMP 550V AC INDUSTUSTRIAL FUSE
GG1000
ActiveEaton - Electronics Division
1000AMP 550V AC INDUSTUSTRIAL FUSE
Description
General part information
GG1000

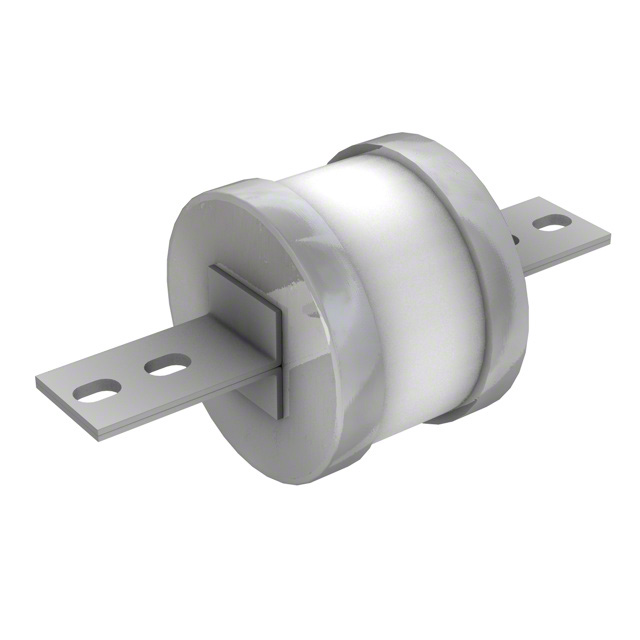

1kA 550 VAC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | GG1000 |
|---|---|
| Applications | Electrical, Industrial |
| Breaking Capacity | 80 kA |
| Current Rating | 1000 A |
| Fuse Type | Cartridge |
| Melting I²t | 6800 |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Size / Dimension Diameter | 3.937 in |
| Size / Dimension Length | 3.307 in |
| Voltage Rating - AC | 550 V |
