MDCOG128064CA6W-BNMLW
ActiveMidas Displays
GRAPHIC LCD, 128 X 64 PIXELS, WHITE ON BLUE, 3V, PARALLEL, SPI, NO FONT, TRANSMISSIVE
MDCOG128064CA6W-BNMLW
ActiveMidas Displays
GRAPHIC LCD, 128 X 64 PIXELS, WHITE ON BLUE, 3V, PARALLEL, SPI, NO FONT, TRANSMISSIVE
Description
General part information
MDCOG128064CA6W-BNMLW

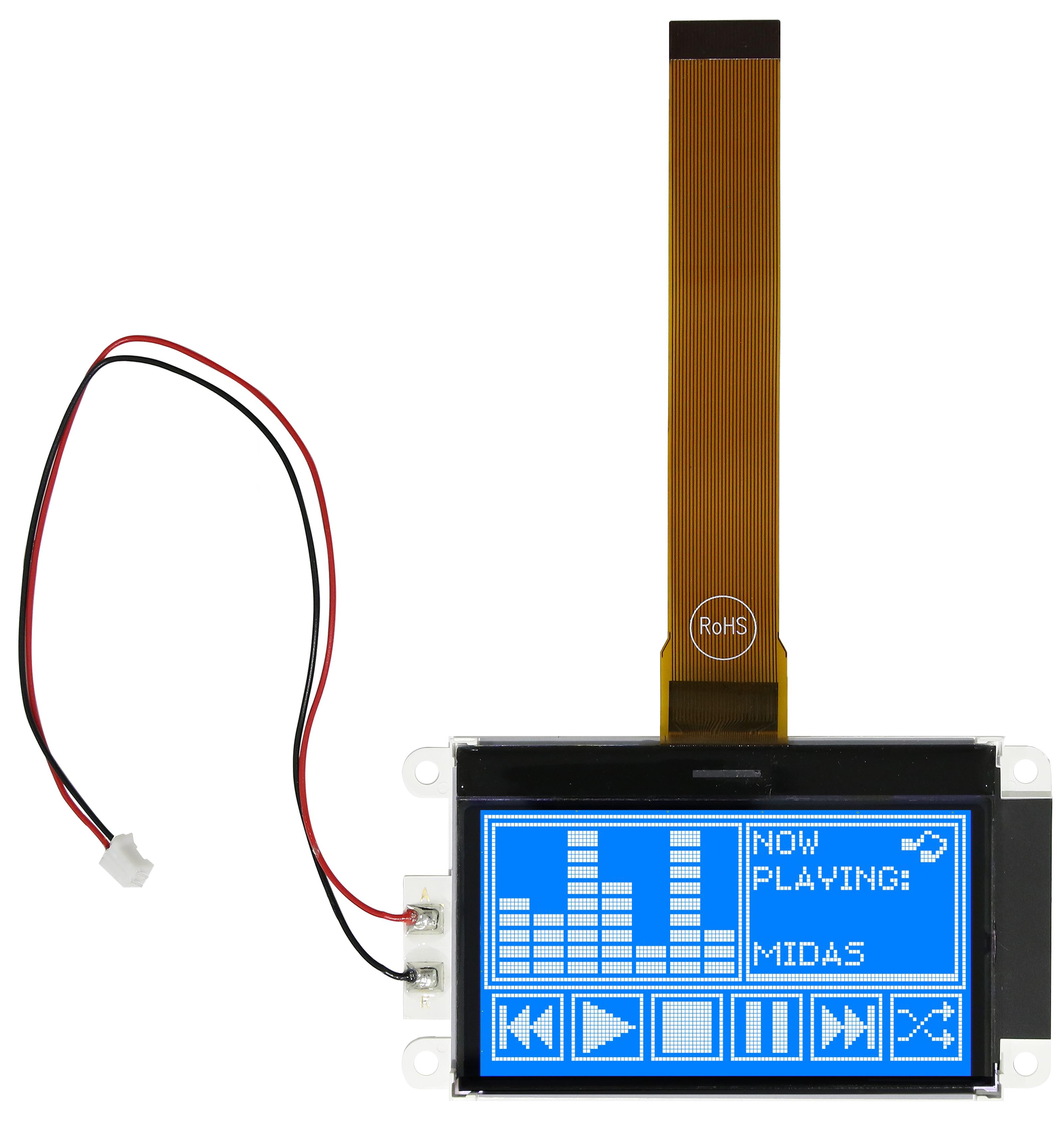

Graphic LCD Display Module Transmissive White STN - Super-Twisted Nematic Parallel, SPI 128 x 64
Technical Specifications
Parameters and characteristics for this part
| Specification | MDCOG128064CA6W-BNMLW |
|---|---|
| Background Color | Blue |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | ST7565P |
| Diagonal Screen Size | 2.97 in |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pixels (Horizontal) | 128 pixels |
| Dot Pixels (Vertical) | 64 pixels |
| Graphics Color | White |
| Interface | Parallel, SPI |
| Touchscreen | Non-Touch |
| Viewing Area Height | 35.5 mm |
| Viewing Area Width | 66.8 mm |
