Description
General part information

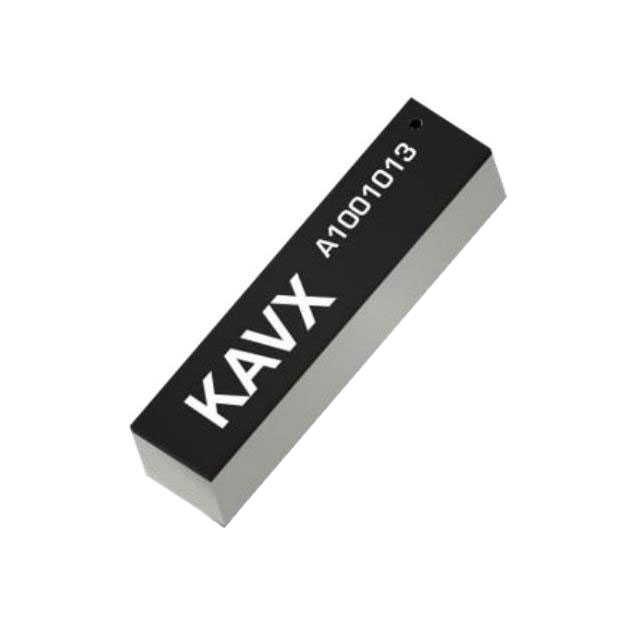

A1001013
RF ANTENNA Bluetooth, Wi-Fi Chip Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | A1001013 |
|---|---|
| Antenna Type | Chip |
| Applications | Bluetooth, Wi-Fi |
| Frequency (Center/Band) | 2.4425 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2485 MHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 0.7 dBi, 2.6 dBi |
| Height (Max) | 0.13 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max | 0.5 W |
| RF Family/Standard | WiFi, Bluetooth |
| Termination | Solder |
| VSWR | 1.8, 1.5 |
| VSWR Maximum | 1.8 |
| VSWR Minimum | 1.5 |
