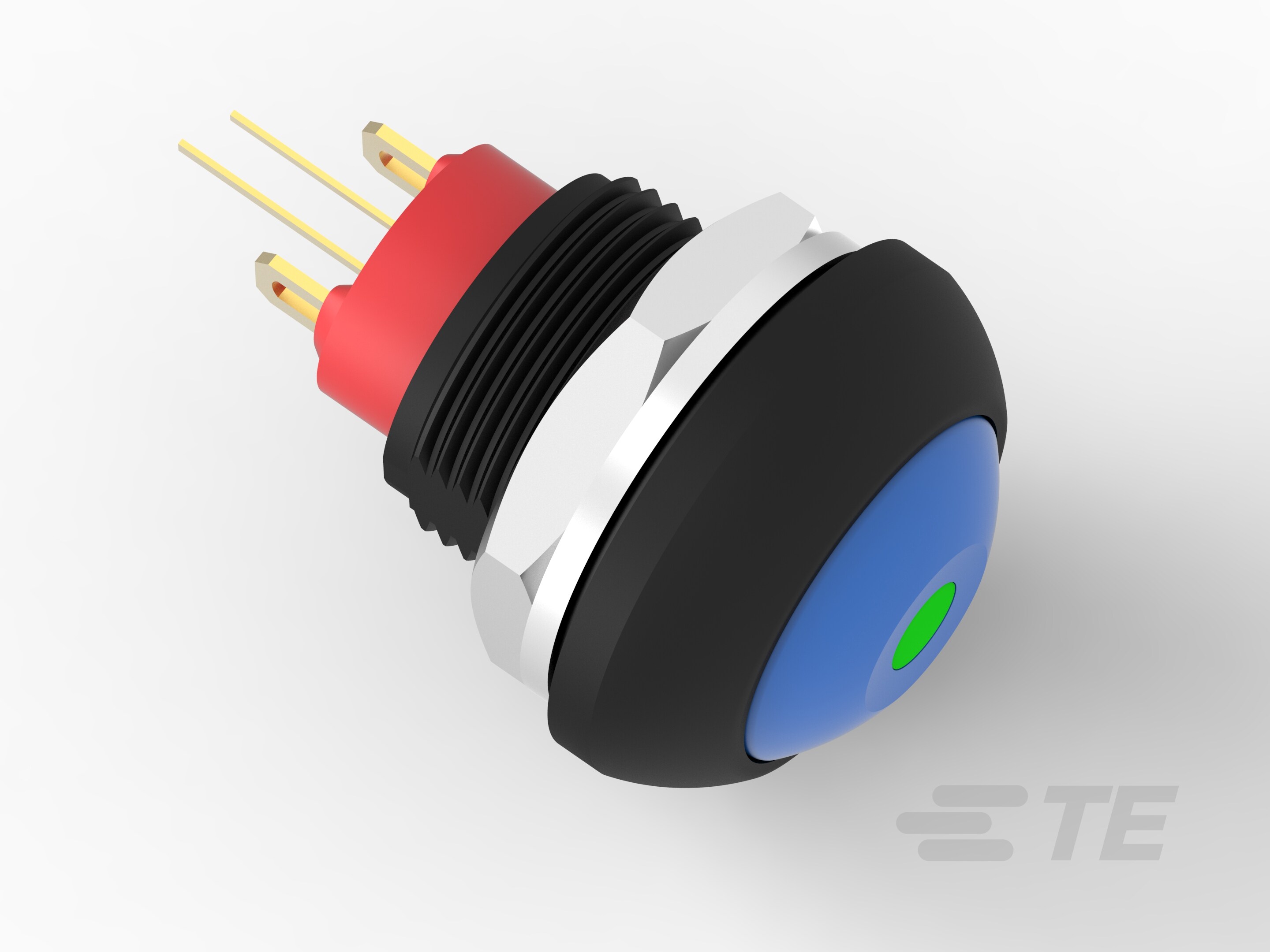

Specification	PB6B2FM7M1CAL06

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	SPST-NO
Color	Green
Color - Actuator/Cap	Blue
Current Rating	125 mA, 200 mA
Electrical Life (Cycles)	500000
Illumination Type	LED
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Diameter	13.6 mm
Panel Cutout Shape	Circular
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	50 V

ALCOSWITCH PB6 Series

...

Part	Voltage Rating - DC	Color - Actuator/Cap	Circuit	Panel Cutout Diameter	Panel Cutout Shape	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Mounting Type	Actuator Type	Termination Style	Voltage Rating - AC	Ingress Protection IP Rating	Ingress Protection Description	Actuator Marking	Switch Function	Type	Mechanical Life (Cycles)	Electrical Life (Cycles)	Color	Illumination Type
TE Connectivity AMP Connectors PB6B2RS6M1CAL00Y500	50 V	Green	SPST-NO	13.6 mm	Circular	85 °C	-30 °C	125 mA 200 mA	Front Panel Mount	Button Domed Round	Wire Leads	125 V	IP68	Dust Tight Waterproof	No Marking	Off-Mom	Standard
TE Connectivity AMP Connectors PB6B2RS5M2CAL00	50 V	Yellow	SPST-NO	13.6 mm	Circular	85 °C	-30 °C	125 mA 200 mA	Front Panel Mount	Button Domed Round	Solder Lug	125 V	IP68	Dust Tight Waterproof	No Marking	Off-Mom	Standard
TE Connectivity AMP Connectors PB6B2FM3M4CAL00	50 V	Red	SPST-NO	13.6 mm	Circular	85 °C	-30 °C	125 mA 200 mA	Front Panel Mount	Button Round	PC Pin	125 V	IP68	Dust Tight Waterproof	No Marking	Off-Mom	Standard
TE Connectivity AMP Connectors PB6B2FM5M1CAL00Y500	50 V	Yellow	SPST-NO	13.6 mm	Circular	85 °C	-30 °C	125 mA 200 mA	Front Panel Mount	Button Round	Wire Leads	125 V	IP68	Dust Tight Waterproof	No Marking	Off-Mom	Standard	1000000 Cycles	500000
TE Connectivity AMP Connectors PB6B2FM2M1CAL03Y500	50 V	Black	SPST-NO	13.6 mm	Circular	85 °C	-30 °C	125 mA 200 mA	Front Panel Mount	Button Round	Wire Leads	125 V	IP68	Dust Tight Waterproof	No Marking	Off-Mom	Illuminated Standard			Red	LED
TE Connectivity AMP Connectors PB6B2FM7M1CAL03Y500	50 V	Blue	SPST-NO	13.6 mm	Circular	85 °C	-30 °C	125 mA 200 mA	Front Panel Mount	Button Round	Wire Leads	125 V	IP68	Dust Tight Waterproof	No Marking	Off-Mom	Illuminated Standard			Red	LED
TE Connectivity AMP Connectors PB6B2HS2M1CAL00S500	50 V	Black	SPST-NO	13.6 mm	Circular	85 °C	-30 °C	125 mA 200 mA	Front Panel Mount	Button Round	Wire Leads	125 V	IP68	Dust Tight Waterproof	No Marking	Off-Mom	Standard
TE Connectivity AMP Connectors PB6B2FM3M1CAL07Y500	50 V	Red	SPST-NO	13.6 mm	Circular	85 °C	-30 °C	125 mA 200 mA	Front Panel Mount	Button Round	Wire Leads	125 V	IP68	Dust Tight Waterproof	No Marking	Off-Mom	Illuminated Standard	1000000 Cycles	500000	Blue	LED
TE Connectivity AMP Connectors PB6B2HS7M1CAL00Y500	50 V	Blue	SPST-NO	13.6 mm	Circular	85 °C	-30 °C	125 mA 200 mA	Front Panel Mount	Button Round	Wire Leads	125 V	IP68	Dust Tight Waterproof	No Marking	Off-Mom	Standard
TE Connectivity AMP Connectors PB6B2FM6M1CAL05	50 V	Green	SPST-NO	13.6 mm	Circular	85 °C	-30 °C	125 mA 200 mA	Front Panel Mount	Button Round	Solder Lug	125 V	IP68	Dust Tight Waterproof	No Marking	Off-Mom	Illuminated Standard			Yellow	LED
