MS3121F12-10P
ActiveAmphenol Industrial Operations

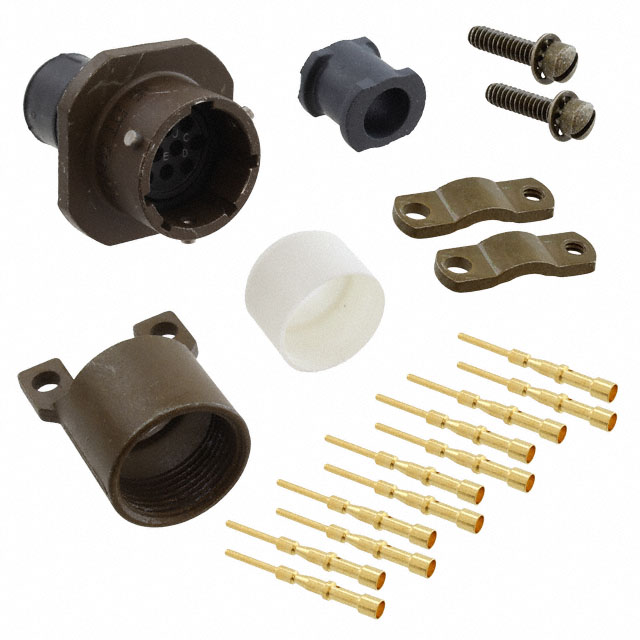

CONN RCPT MALE 10POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3121F12-10P
ActiveAmphenol Industrial Operations
CONN RCPT MALE 10POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3121F12-10P | MS3121F12 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle Housing, Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | - | Circular |
| Contact Size | - | 20 |
| Contact Type | - | Crimp |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Grade | Military | Military |
| Housing Color | - | Olive Drab |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | 10 | 8 - 10 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | W, X, N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Chromate over Cadmium, Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 12-8, 12-3 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Type | - | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 112.12 | |
| 10 | $ 102.89 | |||
| 25 | $ 98.93 | |||
| 50 | $ 95.63 | |||
| 100 | $ 90.36 | |||
MS3121F12 Series
CONN RCPT HSG FMALE 8POS INLINE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Mounting Type | Shell Finish | Features | Shielding | Orientation | Type | Housing Color | Contact Type | Insert Material | Number of Positions | Shell Material | Fastening Type | Qualification | Note | Contact Size | Shell Size - Insert | Contact Shape | Grade | Connector Type | Contact Finish - Mating | Termination | Primary Material | Applications | Backshell Material, Plating | Color | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3121F12-8SWLC | -55 °C | 125 °C | Environment Resistant | Free Hanging (In-Line) | Chromate over Cadmium | Cable Clamp | Unshielded | W | For Female Sockets | Olive Drab | Crimp | Neoprene | 8 | Aluminum | Bayonet Lock | MIL-DTL-26482 Series I | Contacts Not Included | 20 | 12-8 | Circular | Military | Receptacle Housing | |||||||
Amphenol Industrial Operations MS3121F12-10PX | -55 °C | 125 °C | Environment Resistant | Free Hanging (In-Line) | Olive Drab Chromate over Cadmium | Backshell, Cable Clamp | Unshielded | X | Neoprene | 10 | Aluminum | Bayonet Lock | MIL-DTL-26482 Series I | Military | Male Pins, Receptacle | Gold | Crimp | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Copper Alloy | |||||||
Amphenol Industrial Operations MS3121F12-10P(LC) | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3121F12-3S | -55 °C | 125 °C | Environment Resistant | Free Hanging (In-Line) | Olive Drab Chromate over Cadmium | Backshell, Cable Clamp | Unshielded | N | Neoprene | Aluminum | Bayonet Lock | MIL-DTL-26482 Series I | 12-3 | Military | Receptacle, Female Sockets | Gold | Crimp | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Copper Alloy | |||||||
Amphenol Industrial Operations MS3121F12-8SW | -55 °C | 125 °C | Environment Resistant | Free Hanging (In-Line) | Olive Drab Chromate over Cadmium | Backshell, Cable Clamp | Unshielded | W | Neoprene | 8 | Aluminum | Bayonet Lock | MIL-DTL-26482 Series I | 12-8 | Military | Receptacle, Female Sockets | Gold | Crimp | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Copper Alloy | ||||||
Amphenol Industrial Operations MS3121F12-3S(LC) | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3121F12-10P | -55 °C | 125 °C | Environment Resistant | Free Hanging (In-Line) | Olive Drab Chromate over Cadmium | Backshell, Cable Clamp | Unshielded | N | Neoprene | 10 | Aluminum | Bayonet Lock | MIL-DTL-26482 Series I | Military | Male Pins, Receptacle | Gold | Crimp | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Copper Alloy | |||||||
Amphenol Industrial Operations MS3121F12-10SW | -55 °C | 125 °C | Environment Resistant | Free Hanging (In-Line) | Olive Drab Chromate over Cadmium | Backshell, Cable Clamp | Unshielded | W | Neoprene | 10 | Aluminum | Bayonet Lock | MIL-DTL-26482 Series I | Military | Receptacle, Female Sockets | Gold | Crimp | Metal | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum, Olive Drab Chromate over Cadmium | Olive Drab | Copper Alloy | |||||||
Amphenol Industrial Operations MS3121F12-8S(LC) | |||||||||||||||||||||||||||||
Amphenol Industrial Operations MS3121F12-3P(LC) |
Description
General part information
MS3121F12 Series
10 Position Circular Connector Receptacle, Male Pins Crimp
