BA230
ActivePasternack
ADAPTOR BNC F/UHF F
BA230
ActivePasternack
ADAPTOR BNC F/UHF F
Description
General part information
BA230

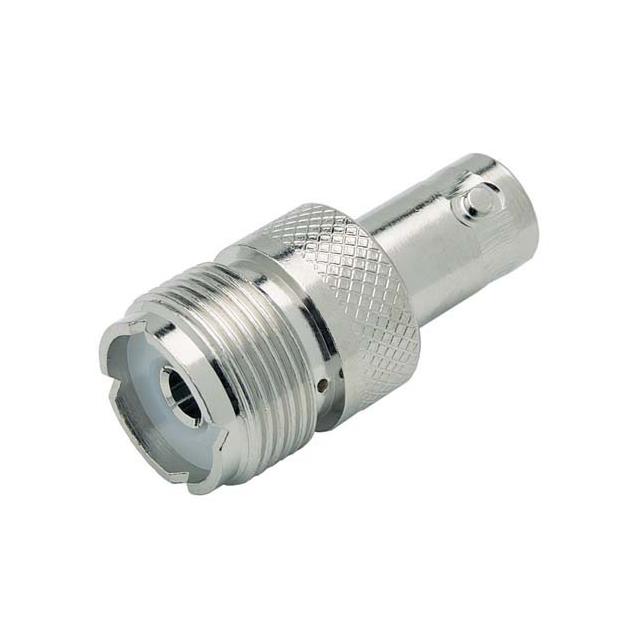

Adapter Coaxial Connector BNC Jack, Female Socket To UHF Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | BA230 |
|---|---|
| Adapter Series | BNC to UHF |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | UHF Jack |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Threaded, Bayonet Lock |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
