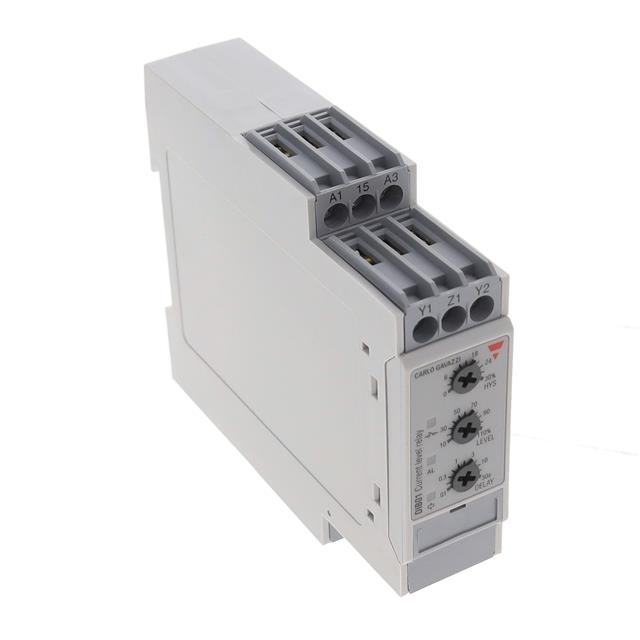

DIB01CB2310A
ActiveCarlo Gavazzi Inc.
115-230VAC CURR. RLY
DIB01CB2310A
ActiveCarlo Gavazzi Inc.
115-230VAC CURR. RLY
Description
General part information
DIB01CB2310A
Current Sensing AC/DC 115 ~ 230VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | DIB01CB2310A |
|---|---|
| Circuit | SPDT (1 Form C) |
| Contact Rating (Current) | 8 A |
| Delay Time (Maximum) | 30 Sec |
| Delay Time (Minimum) | 0.1 Sec |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Relay |
| Trip Current (Max) | 10 A |
| Trip Current (Min) | 0.1 A |
| Trip Status | Low, Energized, Latching High |
| Type | Current Sensing AC/DC |
| Voltage - Supply (Maximum) | 230 VAC |
| Voltage - Supply (Minimum) | 115 VAC |
