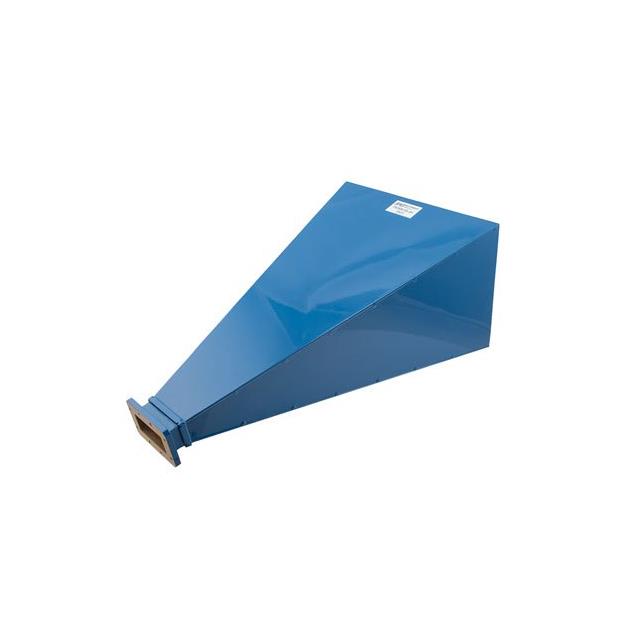

PE9861B-20
ActivePasternack
WR-187 STANDARD GAIN HORN ANTENN
PE9861B-20
ActivePasternack
WR-187 STANDARD GAIN HORN ANTENN
Description
General part information
PE9861B-20
RF ANTENNA General Purpose Horn Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9861B-20 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Frequency (Center/Band) | 4.9 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 5.85 GHz |
| Frequency Range (Min) | 3.95 GHz |
| Gain | 20 dBi |
| Height (Max) | 15.68 in |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| VSWR | 1.5 |
