104192-2
ActiveTE Connectivity AMP Connectors
CONN RCPT 10POS 0.05 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
104192-2
ActiveTE Connectivity AMP Connectors
CONN RCPT 10POS 0.05 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104192-2 | 104192 Series |
|---|---|---|
| Connector Type | Receptacle | Receptacle |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Length - Post | 2.54 mm | 2.54 mm |
| Contact Length - Post | 0.1 in | 0.1 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height [custom] | 0.35 in | 0.35 in |
| Insulation Height [custom] | 8.89 mm | 8.89 mm |
| Mated Stacking Heights | 11.43 mm, 12.57 mm | 11.43 - 12.57 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 10 | 8 - 15 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Termination | Solder | Solder |
| Voltage Rating | 30 VAC | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 2508 | $ 2.26 | |
104192 Series
CONN RCPT 8POS 0.05 GOLD PCB
| Part | Insulation Color | Number of Positions | Contact Type | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Shape | Material Flammability Rating | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mated Stacking Heights | Fastening Type | Mounting Type | Termination | Insulation Height [custom] | Insulation Height [custom] | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Connector Type | Contact Material | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-104192-1 | Black | 8 | Female Socket | 30 VAC | -65 ░C | 105 ░C | Gold | Square | UL94 V-0 | Tin | 2.54 mm | 0.1 in | 150 Áin | 3.81 Ám | 11.43 mm, 12.57 mm | Push-Pull | Through Hole | Solder | 0.35 in | 8.89 mm | All | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Receptacle | Copper Alloy | 1 |
TE Connectivity AMP Connectors 104192-2 | Black | 10 | Female Socket | 30 VAC | -65 ░C | 105 ░C | Gold | Square | UL94 V-0 | Tin-Lead | 2.54 mm | 0.1 in | 150 Áin | 3.81 Ám | 11.43 mm, 12.57 mm | Push-Pull | Through Hole | Solder | 0.35 in | 8.89 mm | All | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Receptacle | Copper Alloy | 1 |
TE Connectivity AMP Connectors 5-104192-2 | Black | 10 | Female Socket | 30 VAC | -65 ░C | 105 ░C | Gold | Square | UL94 V-0 | Tin | 2.54 mm | 0.1 in | 150 Áin | 3.81 Ám | 11.43 mm, 12.57 mm | Push-Pull | Through Hole | Solder | 0.35 in | 8.89 mm | All | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Receptacle | Copper Alloy | 1 |
TE Connectivity AMP Connectors 5-104192-4 | Black | 15 | Female Socket | 30 VAC | -65 ░C | 105 ░C | Gold | Square | UL94 V-0 | Tin | 2.54 mm | 0.1 in | 150 Áin | 3.81 Ám | 11.43 mm, 12.57 mm | Push-Pull | Through Hole | Solder | 0.35 in | 8.89 mm | All | 30 Áin | 0.76 Ám | 0.05 in | 1.27 mm | Receptacle | Copper Alloy | 1 |
Description
General part information
104192 Series

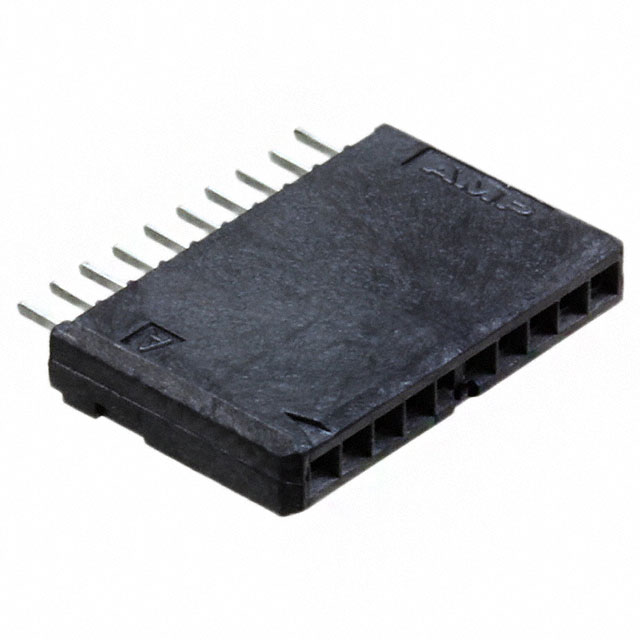

10 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
