2-328975-2
UnknownTE Connectivity AMP Connectors

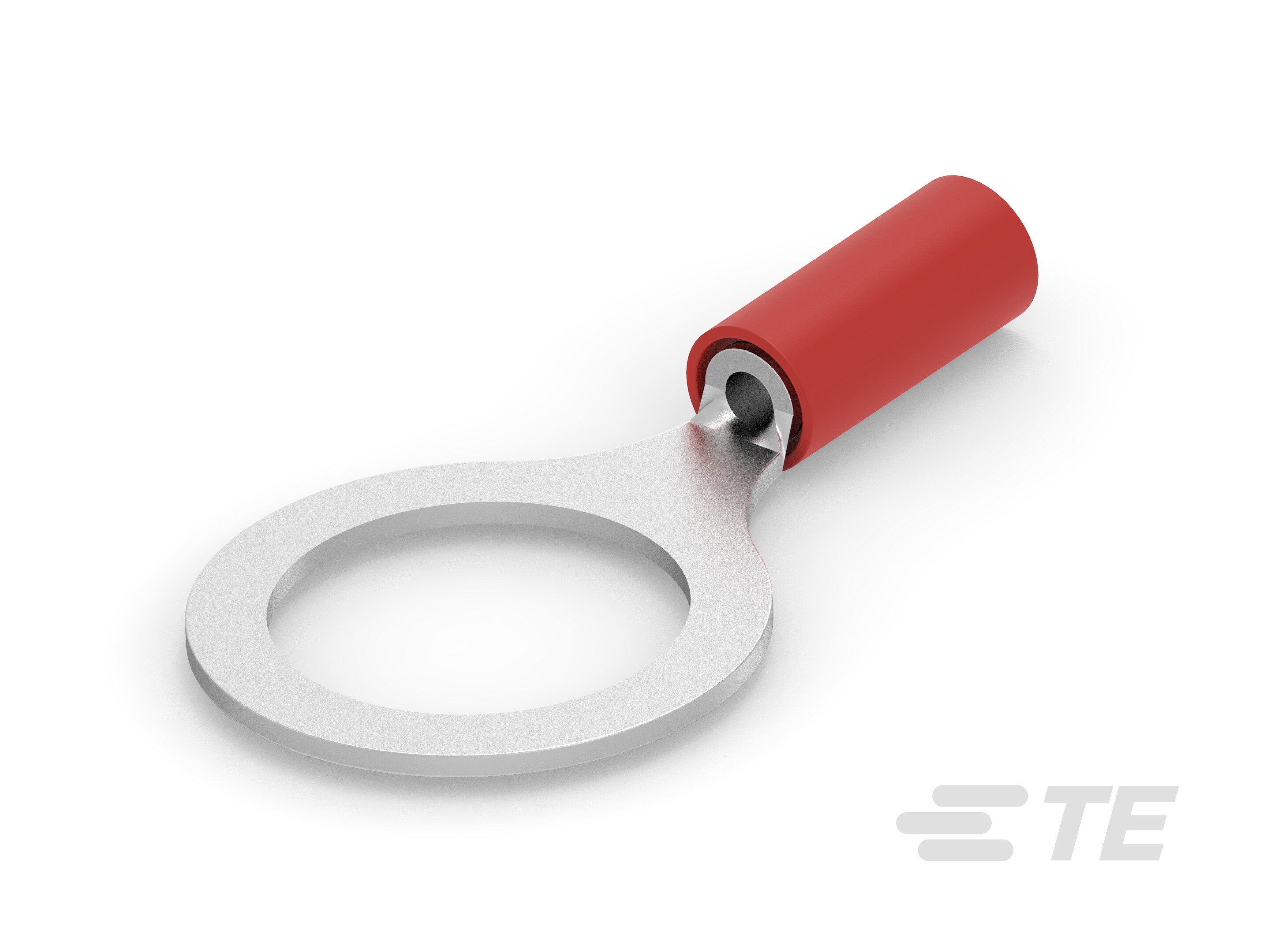

RING TONGUE TERMINAL 20AWG COPPER RED/RED STRIPE 34.42MM TIN LOOSE
2-328975-2
UnknownTE Connectivity AMP Connectors
RING TONGUE TERMINAL 20AWG COPPER RED/RED STRIPE 34.42MM TIN LOOSE
Description
General part information
2-328975-2
Closed Ring Tongue Terminal, 20 AWG, M12 Stud, 13.08 mm [.515 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-328975-2 |
|---|---|
| Color | Red, Red Stripe |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination, Insulation Restriction |
| Insulation | Insulated |
| Length - Overall | 1.355 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.5 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.713 in |
| Wire Gauge | 20 AWG |
