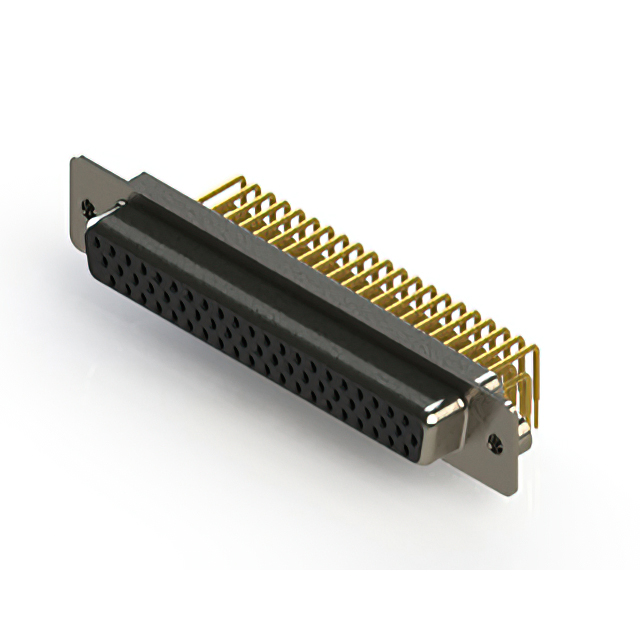

634-M62-363-BT2
ActiveEDAC Inc.
634M SERIES RIGHT ANGLE D-SUB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
634-M62-363-BT2
ActiveEDAC Inc.
634M SERIES RIGHT ANGLE D-SUB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 634-M62-363-BT2 |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Shielded |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 62 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
634-M62 Series
| Part | Shell Size, Connector Layout | Flange Feature | Number of Rows | Material Flammability Rating | Backset Spacing | Backset Spacing | Current Rating (Amps) | Contact Material | Number of Positions | Contact Finish | Dielectric Material | Shell Material, Finish | Contact Finish Thickness | Color | Connector Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Features | Connector Style | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 4 | 4-40 | 3 | UL94 V-0 | 8.89 mm | 0.35 in | 5 A | Copper Alloy | 62 | Gold | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | Flash | Black | Receptacle Female Sockets | Signal | -55 °C | 125 °C | Solder | Mounting Brackets Shielded | D-Sub High Density | Board Edge Right Angle Through Hole | ||
EDAC Inc. | 4 | Housing/Shell (Unthreaded) | 3 | UL94 V-0 | 8.89 mm | 0.35 in | 5 A | Copper Alloy | 62 | Gold | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | White | Receptacle Female Sockets | Signal | -55 °C | 125 °C | Solder | Shielded | D-Sub High Density | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | |
EDAC Inc. | 4 | Housing/Shell (Unthreaded) | 3 | UL94 V-0 | 8.89 mm | 0.35 in | 5 A | Copper Alloy | 62 | Gold | Polyamide (PA6T) Nylon 6T | Black | Receptacle Female Sockets | Signal | -55 °C | 125 °C | Solder | Shielded | D-Sub High Density | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | ||
EDAC Inc. | 4 | Housing/Shell (4-40) | 3 | UL94 V-0 | 8.89 mm | 0.35 in | 5 A | Copper Alloy | 62 | Gold | Polyamide (PA6T) Nylon 6T | Black | Receptacle Female Sockets | Signal | -55 °C | 125 °C | Solder | Board Lock Mounting Brackets Shielded | D-Sub High Density | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | ||
EDAC Inc. | 4 | Housing/Shell (4-40) | 3 | UL94 V-0 | 8.89 mm | 0.35 in | 5 A | Copper Alloy | 62 | Gold | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | Black | Receptacle Female Sockets | Signal | -55 °C | 125 °C | Solder | Board Lock Mounting Brackets Shielded | D-Sub High Density | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | |
EDAC Inc. | 4 | 4-40 | 3 | UL94 V-0 | 8.89 mm | 0.35 in | 5 A | Copper Alloy | 62 | Gold | Polyamide (PA6T) Nylon 6T | White | Receptacle Female Sockets | Signal | -55 °C | 125 °C | Solder | Board Lock Mounting Brackets Shielded | D-Sub High Density | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | ||
EDAC Inc. | 4 | Housing/Shell (4-40) | 3 | UL94 V-0 | 8.89 mm | 0.35 in | 5 A | Copper Alloy | 62 | Gold | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | Flash | Black | Receptacle Female Sockets | Signal | -55 °C | 125 °C | Solder | Mounting Brackets Shielded | D-Sub High Density | Board Edge Right Angle Through Hole | ||
EDAC Inc. | 4 | Housing/Shell (4-40) | 3 | UL94 V-0 | 8.89 mm | 0.35 in | 5 A | Copper Alloy | 62 | Gold | Polyamide (PA6T) Nylon 6T | Black | Receptacle Female Sockets | Signal | -55 °C | 125 °C | Solder | Shielded | D-Sub High Density | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin | ||
EDAC Inc. | 4 | Housing/Shell (Unthreaded) | 3 | UL94 V-0 | 8.89 mm | 0.35 in | 5 A | Copper Alloy | 62 | Gold | Polyamide (PA6T) Nylon 6T | Black | Receptacle Female Sockets | Signal | -55 °C | 125 °C | Solder | Shielded | D-Sub High Density | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | ||
EDAC Inc. | 4 | 4-40 | 3 | UL94 V-0 | 8.89 mm | 0.35 in | 5 A | Copper Alloy | 62 | Gold | Polyamide (PA6T) Nylon 6T | Nickel Plated Steel | Black | Receptacle Female Sockets | Signal | -55 °C | 125 °C | Solder | Board Lock Mounting Brackets Shielded | D-Sub High Density | Board Edge Right Angle Through Hole | 0.38 µm | 15 µin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 300 | $ 22.54 | |
Description
General part information
634-M62 Series
62 Position D-Sub, High Density Receptacle, Female Sockets Connector
