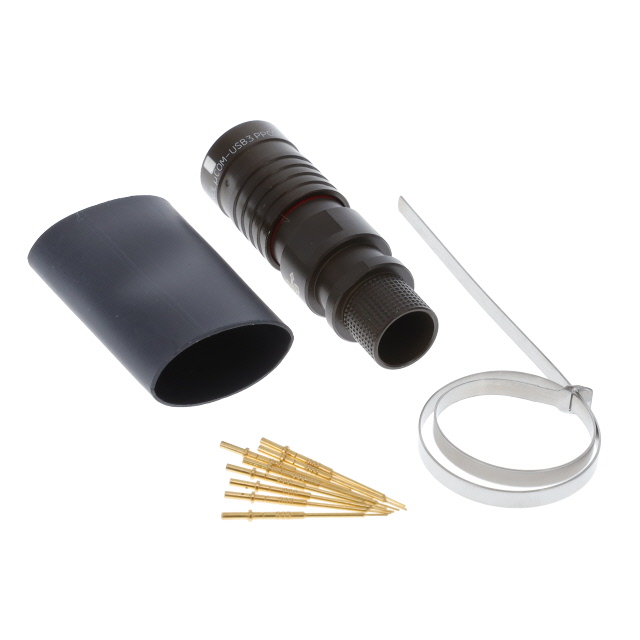

UCOMUSB3PPCGB

Connectors, Interconnects

UCOMUSB3PPCGB

Active

McGill Microwave Systems

CONN PLUG MALE 8POS CRIMP

UCOMUSB3PPCGB

Connectors, Interconnects

UCOMUSB3PPCGB

Active

McGill Microwave Systems

CONN PLUG MALE 8POS CRIMP

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCOMUSB3PPCGB

Applications	Military, Aerospace
Color	Olive Drab
Connector Type	Male Pins, Plug
Fastening Type	Push-Pull
Features	Heat Shrink, Coupling Nut
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Position Types	Data
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Brass
Shielding	Unshielded
Termination	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Bag	1	$ 267.53	30d+
		10	$ 247.91

CAD

3D models and CAD resources for this part

Description

General part information

UCOMUSB Series

8 (Data) Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

UCOMUSB Series

Part	Shell Finish	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Connector Type	Color	Number of Positions	Position Types	Features	Orientation	Termination	Applications	Cable Opening (Min)	Cable Opening (Max)	Shielding	Primary Material	Fastening Type	Plating	Backshell Material	Shell Material	Mounting Feature	Backshell Material, Plating

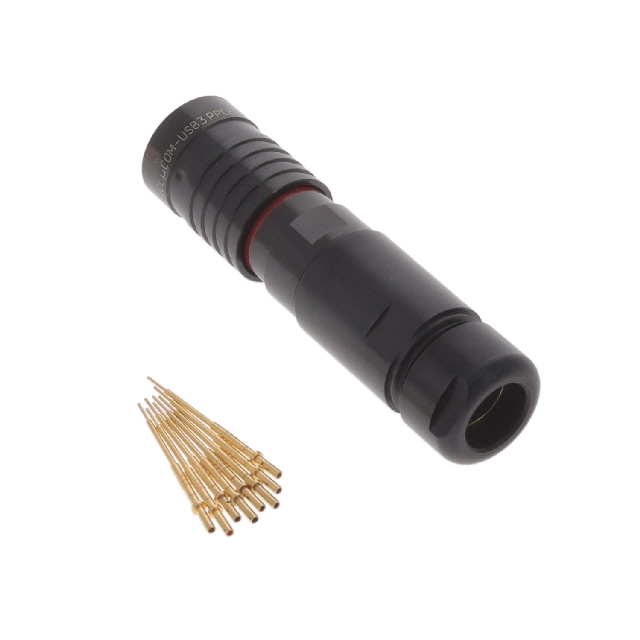

McGill Microwave Systems UCOMUSB3PPCBGA	Black Nickel	125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug	Black	8	Data	Backshell Coupling Nut	Keyed	Crimp	Aerospace Military	0.217 in	0.295 in	Unshielded	Metal	Push-Pull	Black Nickel	Brass	Brass

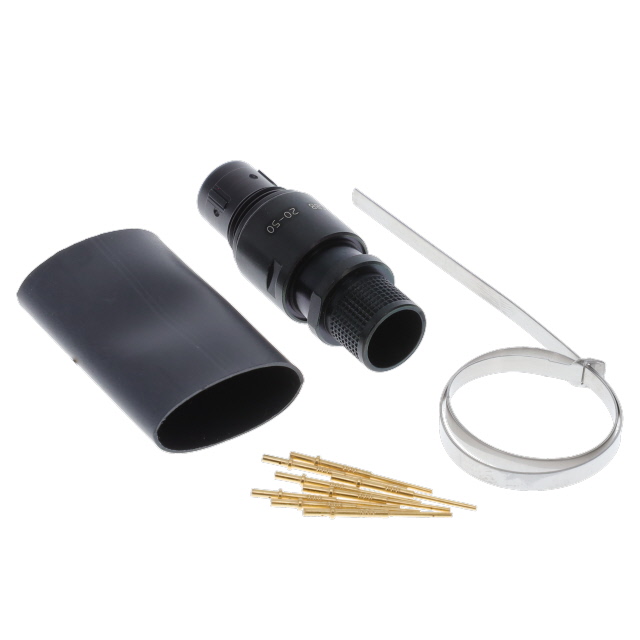

McGill Microwave Systems UCOMUSB3LCBB	Black Nickel	125 °C	-55 °C	Free Hanging (In-Line)	Female Sockets Receptacle	Black	8	Data	Heat Shrink	Keyed	Crimp	Aerospace Military			Unshielded	Metal	Push-Pull Threaded			Brass
McGill Microwave Systems UCOMUSB3PPSUB		125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug		8	Data	Coupling Nut Heat Shrink	Keyed	Solder Cup	Aerospace Military			Unshielded	Metal	Push-Pull			Brass

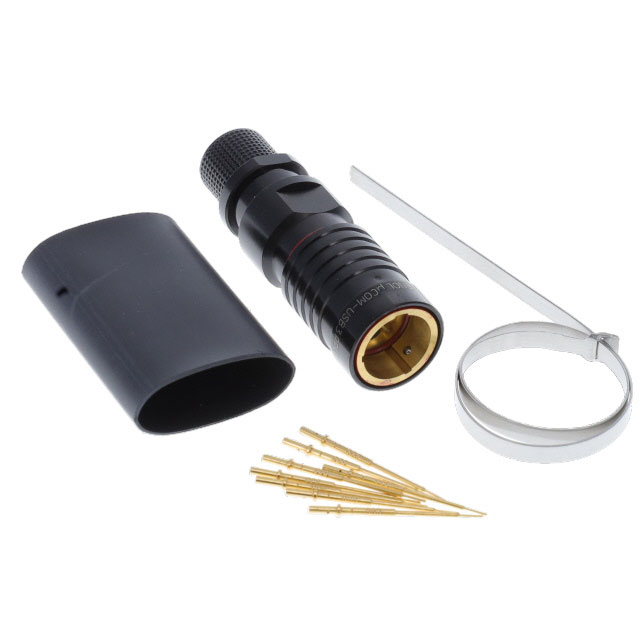

McGill Microwave Systems UCOMUSB3PPCBB	Black Nickel	125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug	Black	8	Data	Coupling Nut Heat Shrink	Keyed	Crimp	Aerospace Military			Unshielded	Metal	Push-Pull			Brass

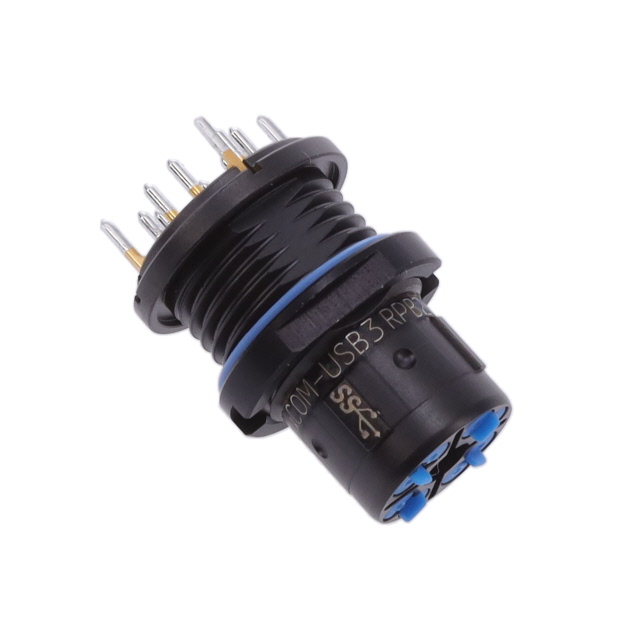

McGill Microwave Systems UCOMUSB3RPB	Black Nickel	125 °C	-55 °C	Panel Mount Through Hole	Female Sockets Receptacle	Black	8	Data		Keyed	Solder	Aerospace Military			Unshielded	Metal	Push-Pull			Brass	Bulkhead Front Side Nut

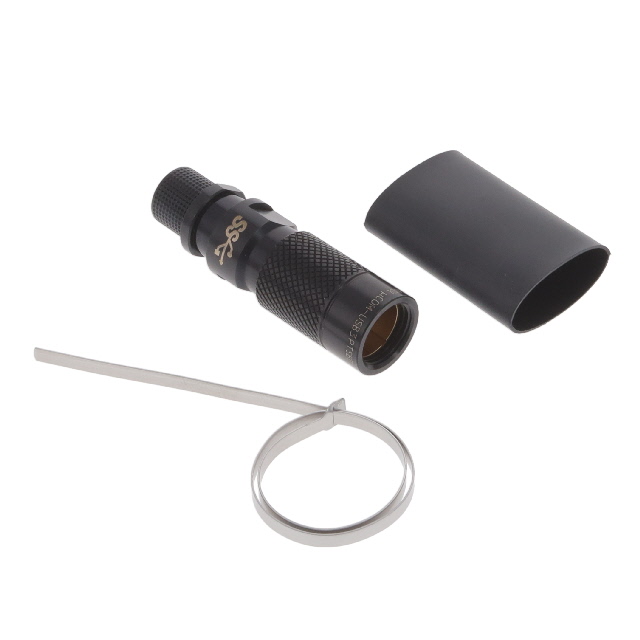

McGill Microwave Systems UCOMUSB3PTSBB	Black Nickel	125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug	Black	8	Data	Coupling Nut Heat Shrink	Keyed	Solder Cup	Aerospace Military			Unshielded	Metal	Threaded			Brass

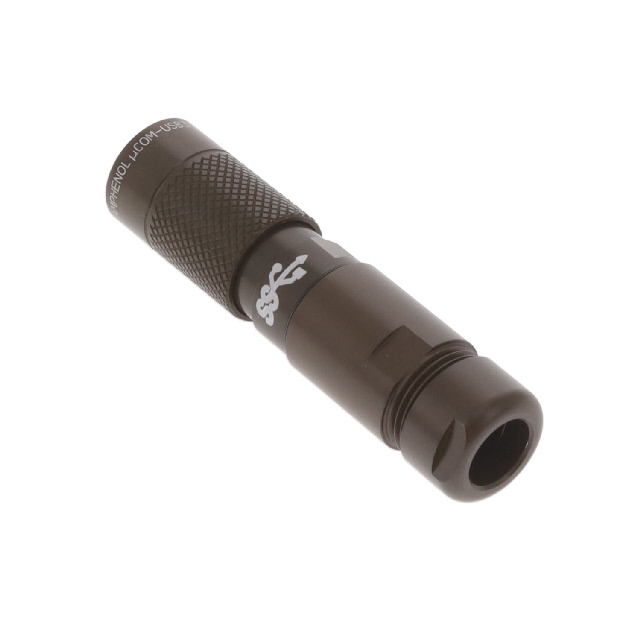

McGill Microwave Systems UCOMUSB3PTSGGA	Olive Drab Cadmium	125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug	Olive Drab	8	Data	Backshell Coupling Nut	Keyed	Solder Cup	Aerospace Military	0.217 in	0.295 in	Unshielded	Metal	Threaded			Brass		Brass Olive Drab Cadmium

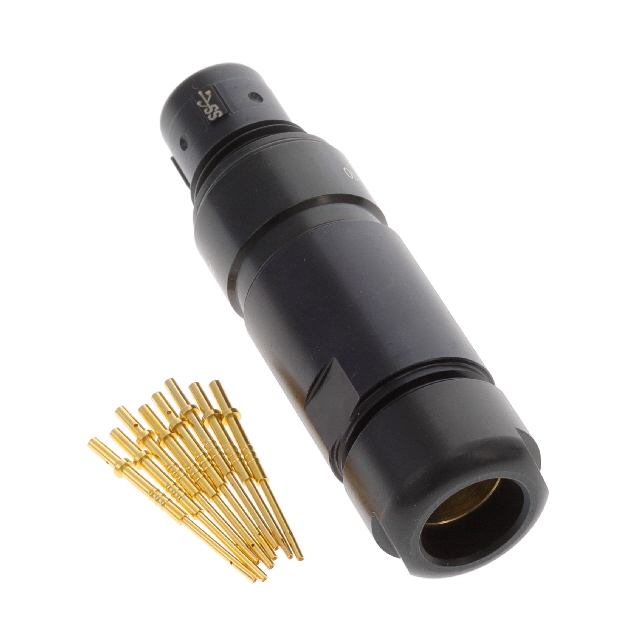

McGill Microwave Systems UCOMUSB3LCBGA	Black Nickel	125 °C	-55 °C	Free Hanging (In-Line)	Female Sockets Receptacle	Black	8	Data	Backshell	Keyed	Crimp	Aerospace Military	0.217 in	0.295 in	Unshielded	Metal	Push-Pull Threaded	Black Nickel	Brass	Brass

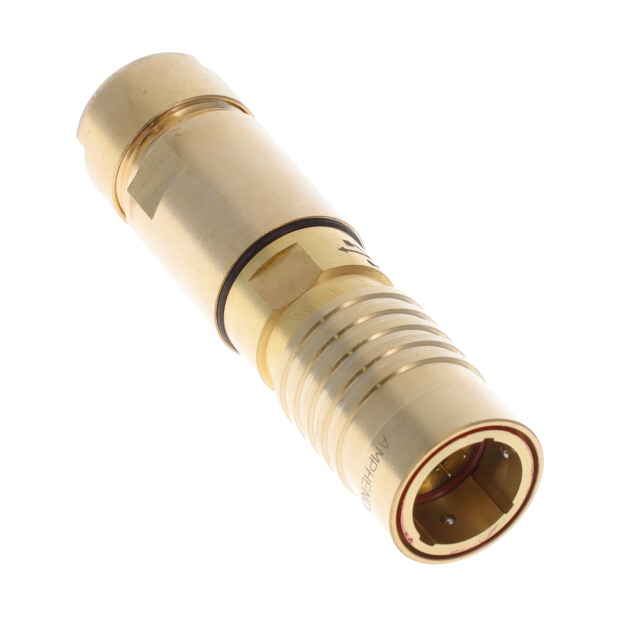

McGill Microwave Systems UCOMUSB3PPSUGA		125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug		8	Data	Backshell Coupling Nut	Keyed	Solder Cup	Aerospace Military	0.217 in	0.295 in	Unshielded	Metal	Push-Pull			Brass		Brass

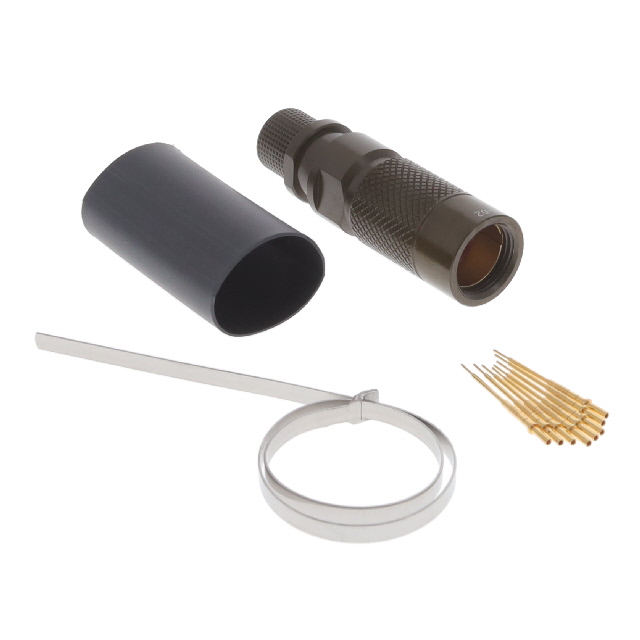

McGill Microwave Systems UCOMUSB3PTCGB	Olive Drab Cadmium	125 °C	-55 °C	Free Hanging (In-Line)	Male Pins Plug	Olive Drab	8	Data	Coupling Nut Heat Shrink	Keyed	Crimp	Aerospace Military			Unshielded	Metal	Threaded			Brass
