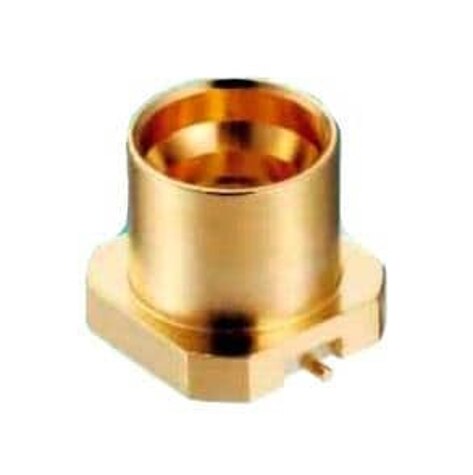

SMP-PR(LD)-SMT-1
ActiveHirose Electric Co Ltd
RF CONNECTORS / COAXIAL CONNECTORS COAXIAL SMP 30GHZ LIMITED DETENT RECPT
SMP-PR(LD)-SMT-1
ActiveHirose Electric Co Ltd
RF CONNECTORS / COAXIAL CONNECTORS COAXIAL SMP 30GHZ LIMITED DETENT RECPT
Description
General part information
SMP Series
RF CONNECTORS / COAXIAL CONNECTORS COAXIAL SMP 30GHZ LIMITED DETENT RECPT
Technical Specifications
Parameters and characteristics for this part
| Specification | SMP-PR(LD)-SMT-1 |
|---|---|
| Center Contact Material | Beryllium Copper |
| Connector Style | SMP |
| Connector Type | Receptacle, Male Pin |
| Contact Termination | Solder |
| Fastening Type | Push-Pull |
| Features | Limited Detent |
| Frequency - Max | 30 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
