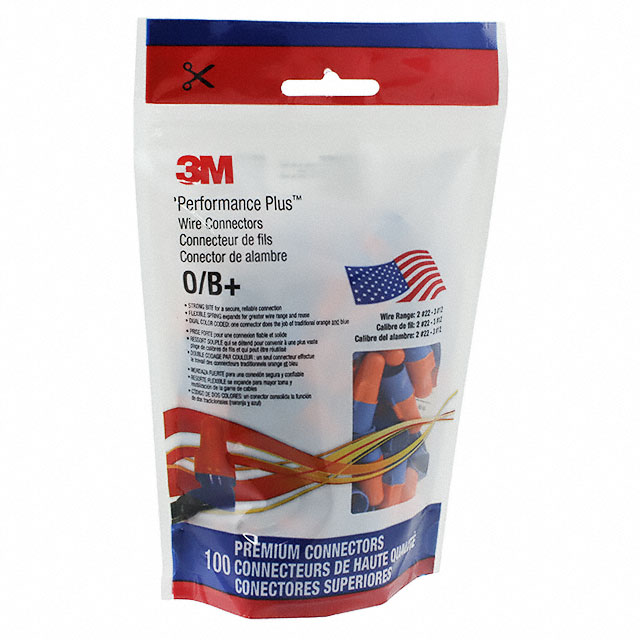

O/B+POUCH
Active3M
CLOSED END SPLICE, TWIST ON, 22 AWG, 12 AWG, 2.5 MM², BLUE, ORANGE
Deep-Dive with AI
Search across all available documentation for this part.
O/B+POUCH
Active3M
CLOSED END SPLICE, TWIST ON, 22 AWG, 12 AWG, 2.5 MM², BLUE, ORANGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | O/B+POUCH | O/B Series |
|---|---|---|
| Color | Orange, Blue | Orange, Blue |
| Features | Flame Retardant, Copper Wire Only | Flame Retardant, Copper Wire Only |
| Insulation | Fully Insulated | Fully Insulated |
| Number of Wire Entries | Varies by Wire Size | Varies by Wire Size |
| Terminal Type | Twist On Wire Cap, Wing | Twist On Wire Cap, Wing |
| Termination | Twist On | Twist On |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
O/B Series
CLOSED END SPLICE, TWIST ON, 22 AWG, 12 AWG, 2.5 MM², BLUE, ORANGE
| Part | Insulation | Color | Features | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Type | Number of Wire Entries | Termination |
|---|---|---|---|---|---|---|---|---|
Fully Insulated | Blue, Orange | Copper Wire Only, Flame Retardant | 12 AWG | 22 AWG | Twist On Wire Cap, Wing | Varies by Wire Size | Twist On | |
3M O/B+JUG | Fully Insulated | Blue, Orange | Copper Wire Only, Flame Retardant | 12 AWG | 22 AWG | Twist On Wire Cap, Wing | Varies by Wire Size | Twist On |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
O/B Series
Terminal Twist On Wire Cap, Wing Connector Twist On 12-22 AWG Orange, Blue
