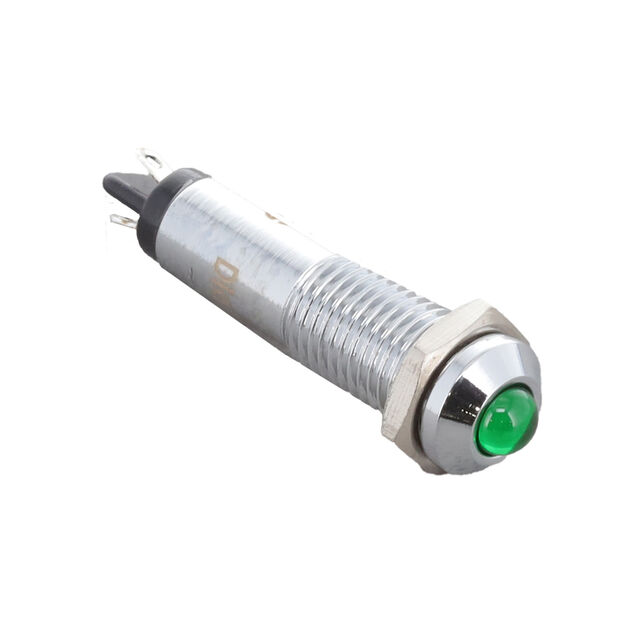

6771212342F

Active

DIALIGHT

LED PANEL INDCATOR GREEN 24V

Search across all available documentation for this part.

Active

DIALIGHT

LED PANEL INDCATOR GREEN 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

LED PANEL INDCATOR GREEN 12V

Part	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Size [diameter]	Lamp Color	Type	Millicandela Rating	Termination Style	Ingress Protection	Wavelength - Peak	Voltage	Current	Ratings	Lens Style	Viewing Angle	Panel Cutout Shape
DIALIGHT 6771212332F	7.2 mm	0.28 in	4 mm	Green	LED	12000 mcd	Solder Lug	IP66, NEMA 4X	525 nm	12 V	30 mA	DC	Round with Domed Top	25 °	Round
DIALIGHT 6771212342F	7.2 mm	0.28 in	4 mm	Green	LED	12000 mcd	Solder Lug	IP66, NEMA 4X	525 nm	24 V	30 mA	DC	Round with Domed Top	25 °	Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.34

General part information

LED Panel Indicator Green 25° 24V 30mA Solder Lug

Technical documentation and resources

No documents available
