SD3112-150-R
ActiveEaton - Electronics Division
FIXED IND 15UH 450MA 654MOHM SMD
SD3112-150-R
ActiveEaton - Electronics Division
FIXED IND 15UH 450MA 654MOHM SMD
Description
General part information
SD3112-150-R

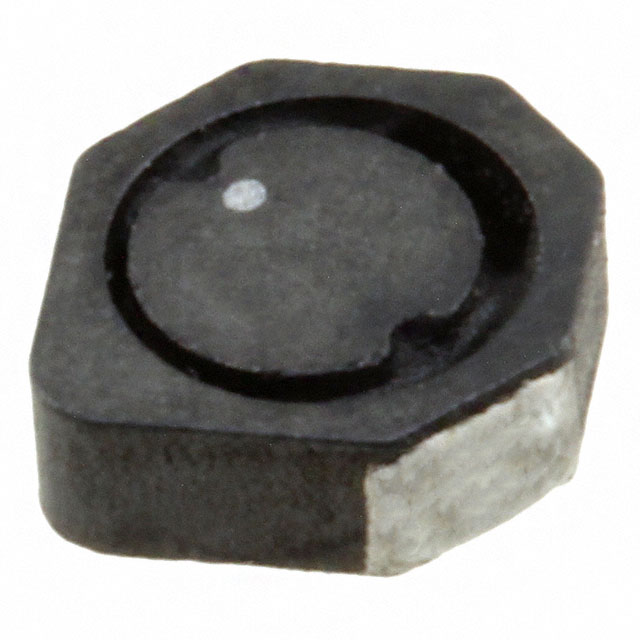

15 µH Shielded Drum Core, Wirewound Inductor 450 mA 654mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SD3112-150-R |
|---|---|
| Current - Saturation (Isat) | 0.44 mA |
| Current Rating | 0.45 A |
| DC Resistance (DCR) | 654 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.122 in |
| Size / Dimension Width | 0.122 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
