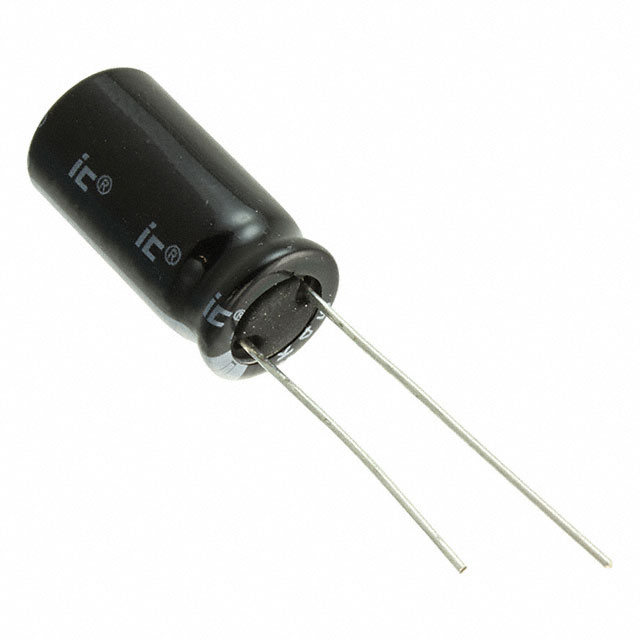

Specification	336CKS400MTJD

Applications	Bypass, Decoupling
Capacitance	33 µF
ESR (Equivalent Series Resistance)	12.0572 Ohm
Height - Seated (Max)	1.043 in
Lead Spacing	0.197 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can, Radial
Polarization	Polar
Ripple Current	300 mA, 540 mA
Size / Dimension Diameter	0.492 in
Tolerance	20 %
Voltage - Rated	400 V
