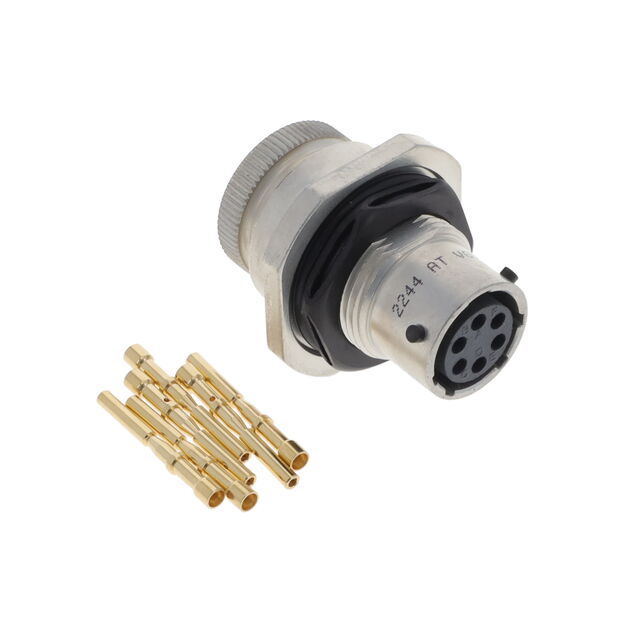

Specification	VG95328T10-6SNJ

Applications	Military
Color	Black
Connector Type	Receptacle, Female Sockets
Fastening Type	Reverse Bayonet Lock
Number of Positions	6
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Shell Finish	Zinc-Tin
Shell Size - Insert Length	10 mm
Shell Size - Insert Width	6 mm
Shielding	Shielded
Termination	Crimp

VG953 Series

...

Part	Applications	Voltage Rating (AC)	Voltage Rating (DC)	Orientation	Contact Finish - Mating	Shell Material	Current Rating	Number of Positions	Cable Opening	Connector Type	Features	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Insert Material	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Fastening Type	Mounting Type	Contact Material	Shell Finish	Termination	Primary Material	Mounting Feature	Shell Size - Insert Width	Shell Size - Insert Length	Color	Material	Qualification	For Use With/Related Products	Accessory Type	Shell Size - Insert	Shell Size - Insert
McGill Microwave Systems VG95328T2461SN	Military	600 VAC	850 VDC	N (Normal)	Gold	Aluminum Alloy	7.5 A	61	1.134 in	Female Sockets Receptacle	Backshell	61	24	Neoprene	125 °C	-55 °C	Shielded	Reverse Bayonet Lock	Panel Mount	Copper Alloy	Cadmium	Crimp	Metal	Bulkhead Front Side Nut

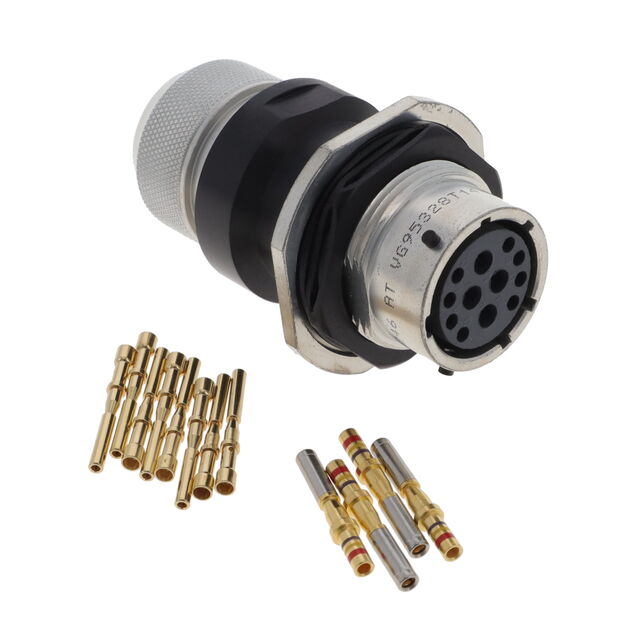

McGill Microwave Systems VG95328T14-12SNJ	Military			N (Normal)				12		Female Sockets Receptacle					125 °C	-55 °C	Shielded	Reverse Bayonet Lock			Zinc-Tin	Crimp			12 mm	14 mm	Black
McGill Microwave Systems VG95328T07C08											Flange																	Aluminum Alloy	MIL-DTL-26482 Series I	Circular Connectors	Dummy Receptacle	8	8
McGill Microwave Systems VG95328T2221PNJ	Military	900 VAC	1250 VDC	N (Normal)	Gold	Aluminum Alloy	13 A	21	1.024 in	Male Pins Receptacle	Backshell			Neoprene	125 °C	-55 °C	Shielded	Reverse Bayonet Lock	Panel Mount	Copper Alloy	Zinc-Tin	Crimp	Metal	Bulkhead Front Side Nut	21 mm	22 mm	Black
McGill Microwave Systems VG95328T1832SNJ	Military	600 VAC	850 VDC	N (Normal)	Gold	Aluminum Alloy	7.5 A	32	0.787 in	Female Sockets Receptacle	Backshell	32	18	Neoprene	125 °C	-55 °C	Shielded	Reverse Bayonet Lock	Panel Mount	Copper Alloy	Zinc-Tin	Crimp	Metal	Bulkhead Front Side Nut			Black
McGill Microwave Systems VG95328T1419SN	Military	600 VAC	850 VDC	N (Normal)	Gold	Aluminum Alloy	7.5 A	19	0.598 in	Female Sockets Receptacle	Backshell	19	14 S	Neoprene	125 °C	-55 °C	Shielded	Reverse Bayonet Lock	Panel Mount	Copper Alloy	Cadmium	Crimp	Metal	Bulkhead Front Side Nut
McGill Microwave Systems VG95328T83APNJ	Military			N (Normal)				3		Male Pins Receptacle					125 °C	-55 °C	Shielded	Reverse Bayonet Lock			Zinc-Tin	Crimp			3 mm	8 mm	Black
McGill Microwave Systems VG95328T2041SXJ	Military	600 VAC	850 VDC	X	Gold	Aluminum Alloy	7.5 A	41	0.906 in	Female Sockets Receptacle	Backshell	41	20	Neoprene	125 °C	-55 °C	Shielded	Reverse Bayonet Lock	Panel Mount	Copper Alloy	Zinc-Tin	Crimp	Metal	Bulkhead Front Side Nut			Black
McGill Microwave Systems VG95328T1419PW	Military	600 VAC	850 VDC	W	Gold	Aluminum Alloy	7.5 A	19	0.598 in	Male Pins Receptacle	Backshell	19	14 S	Neoprene	125 °C	-55 °C	Shielded	Reverse Bayonet Lock	Panel Mount	Copper Alloy	Cadmium	Crimp	Metal	Bulkhead Front Side Nut
McGill Microwave Systems VG95328T07C14J											Flange																	Aluminum Alloy	MIL-DTL-26482 Series I	Circular Connectors	Dummy Receptacle		14
