W1X103SCVKGGKR
ObsoleteVishay Dale
W1X Y275VAC 10NF -20% K10000 E3
W1X103SCVKGGKR
ObsoleteVishay Dale
W1X Y275VAC 10NF -20% K10000 E3
Description
General part information
W1X103SCVKGGKR

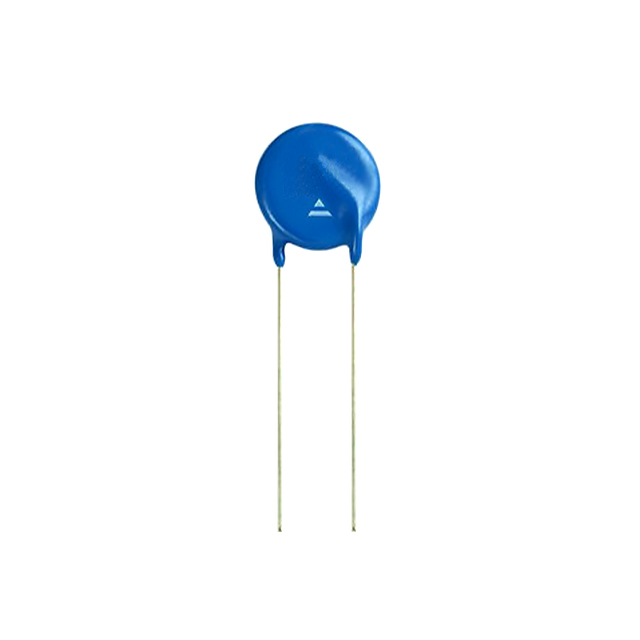

10000 pF -20%, +50% 275VAC Ceramic Capacitor Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | W1X103SCVKGGKR |
|---|---|
| Applications | Safety |
| Capacitance | 10000 pF |
| Height - Seated (Max) | 0.709 in |
| Lead Spacing | 0.295 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Disc, Radial |
| Ratings | X1 |
| Size / Dimension Diameter | 0.591 in |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 275 VAC |
